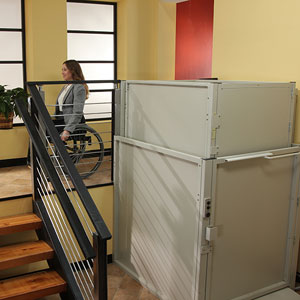

3-Gate Vertical Platform Lift

Bruno’s 3-gate (Toe-guard) lower enclosure vertical platform lift provides a full barrier at the lower landing with no access under the lift for maximum safety.  Access up to 53 inches with a quiet, smooth ACME screw-driven DC motor with continuous charge battery operation for performance even in power outages.  Made in America.

  • Provides access to 53″
  • 750 lb (340 kg) lifting capacity
  • Reliable, quiet ACME screw-driven DC motor with continuous charge battery operation
  • Weather-protected controls and powder-coated paint
  • Keyed, constant pressure controls on platform; emergency stop switch and audio/visual alarm
  • Bottom platform safety panel
  • 42″ (1067 mm) high, solid, side platform walls
  • Top/bottom limit switches; upper/lower final limit safety switches
  • 36″ x 54″ (914 mm x 1372 mm) non-skid platform
  • Fixed ramp
  • Power system model VPL-3353B, 1/2 hp DC motor (includes 17AH batteries)
  • Gold Warranty: Two years on major components; one year on parts

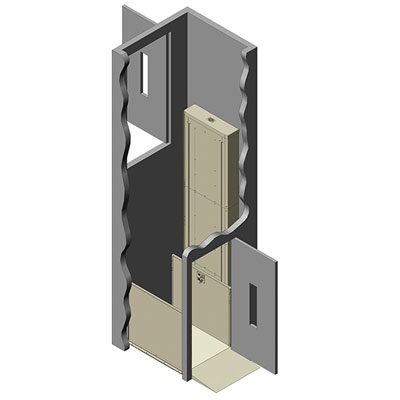

ILS-01155: Enclosed straight through platform – no pit DWG DXF PDF
ILS-01154: Enclosed straight through platform – pit DWG DXF PDF
ILS-00938: Top landing gate detail DWG DXF PDF
ILS-01027: Flush mount door detail DWG DXF PDF
ILS-01194: Flush mount door detail (Aluminum with Plexiglas) DWG DXF PDF
ILS-00846: Canopy detail DWG DXF PDF
  • Top landing gate includes call/send controls with key and mechanical interlock or electrical strike interlock (ESI)
  • Cold weather package recommended if operating in temps below 20oF (-7oC)
  • “Stay-dry” platform canopy
  • Several platform sizes
  • Paddle controls on the platform
  • Paddle landing controls
  • Flush mount doors with interlock
  • Power assisted door/gate operator
  • ADA compliant telephone kit
