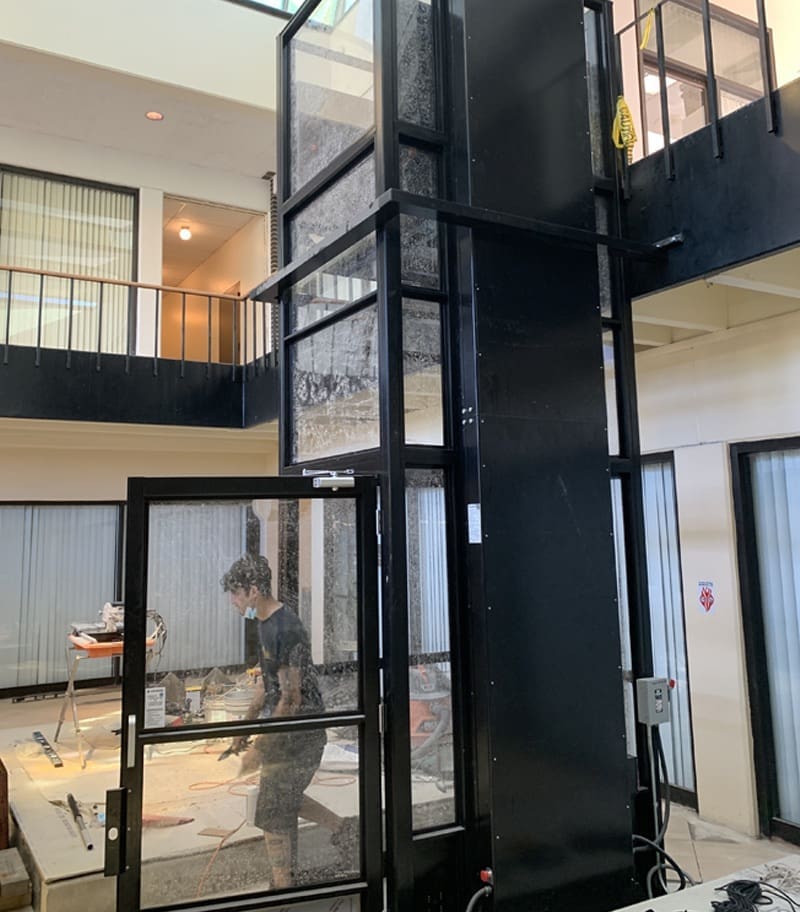

A person stands near a sleek black V-1504 Enclosed Vertical Platform Lift by Savaria with glass doors on the ground floor of a multi-story building with open interiors, visible upper-level railings, and construction materials around.

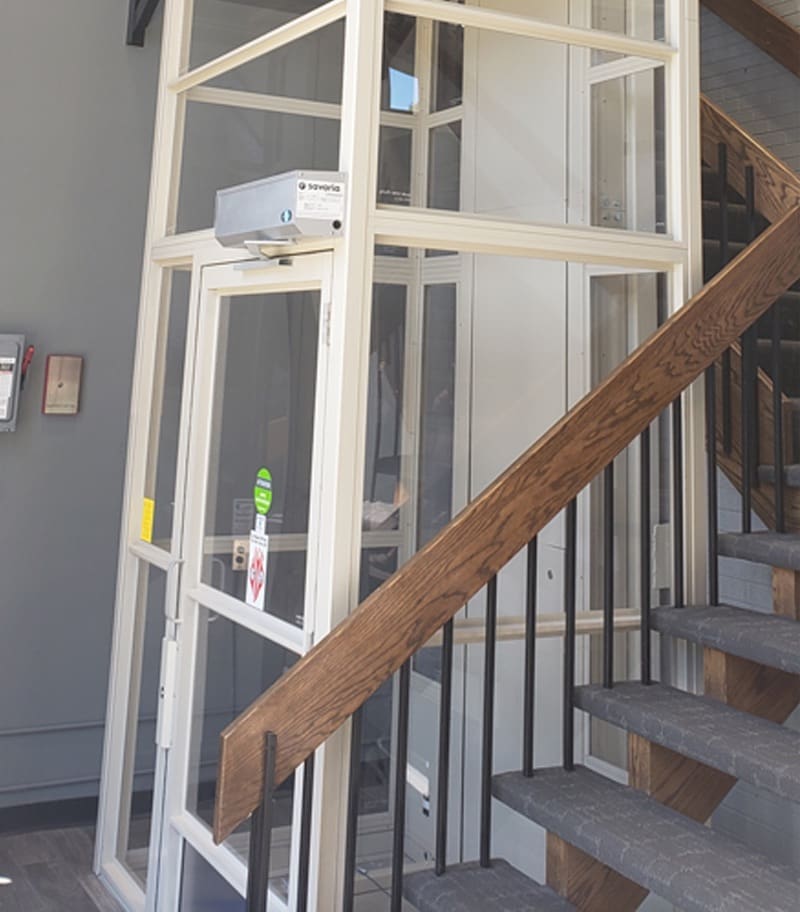

A V-1504 Enclosed Vertical Platform Lift by Savaria is installed beside a wooden staircase with black railings in a modern building. The compact glass-walled lift includes a control panel and safety instructions on its door.
Gallery Thumb
Gallery Thumb
Gallery Thumb
Gallery Thumb
Logo featuring the word ACCESS in yellow, with a stylized, geometric A resembling a compass and ruler. A yellow line underlines the text, forming part of the A and extending beneath the word.

V-1504 Enclosed Vertical Platform Lift by Savaria

Savaria Logo

The Savaria V-1504 Enclosure is a commercial-grade vertical platform lift featuring a weather-protected enclosure, hydraulic drive system, and machine roomless design. Built for indoor or outdoor accessibility, it delivers reliable performance, ADA-compliant access, and extensive customization options for commercial and residential applications.

Get a Free Quote
  • Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available
V-1504 Enclosed Vertical Platform Lift

The Savaria V-1504 Enclosure Vertical Platform Lift is a fully enclosed accessibility solution designed for residential and commercial applications. Featuring a reliable hydraulic drive system and weather-protected enclosure, it provides safe, smooth access to elevated entrances, balconies, mezzanines, and multi-level buildings. Suitable for both indoor and outdoor installations, the V-1504 Enclosure offers extensive customization options, including enclosure finishes, glass or acrylic panels, automatic doors, and multiple entry configurations to complement virtually any environment.

Features:
  • Enclosed Accessibility Solution: Fully enclosed vertical platform lift designed for commercial and residential accessibility applications.
  • Hydraulic Drive System: Reliable 2:1 chain hydraulic drive delivers smooth, dependable performance.
  • Multiple Entry Configurations: Available with same-side, straight-through, or 90-degree entry and exit layouts.
  • Flexible Platform Sizes: Standard 36″ x 54″ platform with additional sizes and custom configurations available.
  • Up to 4 Stops: Accommodates multiple landings with travel up to 14 feet in U.S. commercial applications and up to 23 feet where permitted.
  • Constant Pressure Controls: Operated using continuous-pressure controls for safe and reliable operation.
  • Custom Enclosure Options: Available with aluminum panels, acrylic inserts, or tempered glass for enhanced appearance and weather protection.
  • Machine Roomless Design: Drive system is housed within the lift structure, eliminating the need for a separate machine room.
  • 750 lb Capacity: Designed to accommodate a wheelchair user and passenger with a generous lifting capacity.
  • All-Weather Construction: Suitable for indoor or outdoor installations with optional weather-resistant upgrades.
  • ADA-Compliant Platform: Designed to support accessibility requirements in commercial environments.
  • 3-Year Warranty: Backed by Savaria’s 36-month warranty against defective parts through an authorized dealer.
Specifications
  • Applications: Residential, commercial, indoor, and outdoor use
  • Standard Capacity: 750 lb (340 kg)
  • Maximum Travel Distance: Up to 23 ft (7 m), subject to local code; commercial applications in the U.S. are typically limited to 12–14 ft depending on code requirements
  • Nominal Speed: 20 ft/min (0.1 m/s)
  • Drive System: 2:1 chain hydraulic drive with machine roomless design
  • Motor: 3 hp (2.2 kW) gear-type motor
  • Minimum Pit Requirement: 3″ (76 mm); access ramp available when a pit is not constructed
  • Power Supply: 120 VAC, 20 amp, single phase, 60 Hz
  • Platform Sizes: 36″ x 48″, 36″ x 54″ (standard), 36″ x 60″; custom sizes available up to 42″ x 60″
  • Entrances: One or two entrances with same-side, straight-through, or 90-degree configurations
  • Stops Served: Up to 4 stops depending on application and local code requirements
  • Installation Type: Machine roomless enclosed vertical platform lift for indoor or outdoor applications
Options
  • Indoor & Outdoor Configurations: Designed for both interior and exterior accessibility applications.
  • Commercial & Residential Use: Flexible configurations available to meet a variety of project requirements.
  • Enclosure & Shaftway Options: Choose from multiple enclosure styles, panel materials, and shaftway configurations.
  • Platform Gate Options: Select gate styles with aluminum, acrylic, or glass inserts.
  • Landing Doors & Gates: Upper and lower landing doors and gates available with glass or acrylic panel inserts.
  • Folding Platform Seat: Add a folding seat for users who prefer seated travel without a wheelchair.
  • Custom Colors & Finishes: Wide range of powder-coat finishes, textures, and custom RAL color options available.
  • Access Ramps: Optional ramps allow installation without constructing a pit.
  • Battery Backup: Provides lift operation during power outages for added convenience and safety.
  • Additional Customizations: Optional door operators, keyless controls, weather-resistant locks, obstacle sensors, communication systems, and more.
Downloads
Landing Doors and Locks Selection Chart
V-1504 Brochure
V-1504 Color Chart
V-1504 Owner's Manual
V-1504 Planning Guide

Have Questions?

Need help choosing or installing an Inclined Platform Lift? Our experts are ready to assist!
Contact Us
Vertical Platform Lift

Freqently Asked Questions

What is the weight capacity of the V-1504 Enclosure Vertical Platform Lift?
The V-1504 Enclosure has a standard lifting capacity of 750 lbs, making it suitable for wheelchair users and accompanying passengers.
Can the V-1504 Enclosure be installed outdoors?
Yes. The fully enclosed design is ideal for outdoor installations, helping protect both users and equipment from weather conditions year-round.
How high can the V-1504 Enclosure travel?
The lift can travel up to 23 feet in residential applications and where local codes permit. Commercial travel limits in the United States are typically 12 to 14 feet, depending on local code requirements.
Does the V-1504 Enclosure require a machine room?
No. The V-1504 features a machine roomless design with the drive system housed within the lift structure, simplifying installation and reducing space requirements.
Can the V-1504 Enclosure be customized?
Yes. The lift offers numerous customization options, including enclosure styles, glass or acrylic panels, platform sizes, custom colors, landing doors, folding seats, battery backup systems, and multiple entry configurations.
