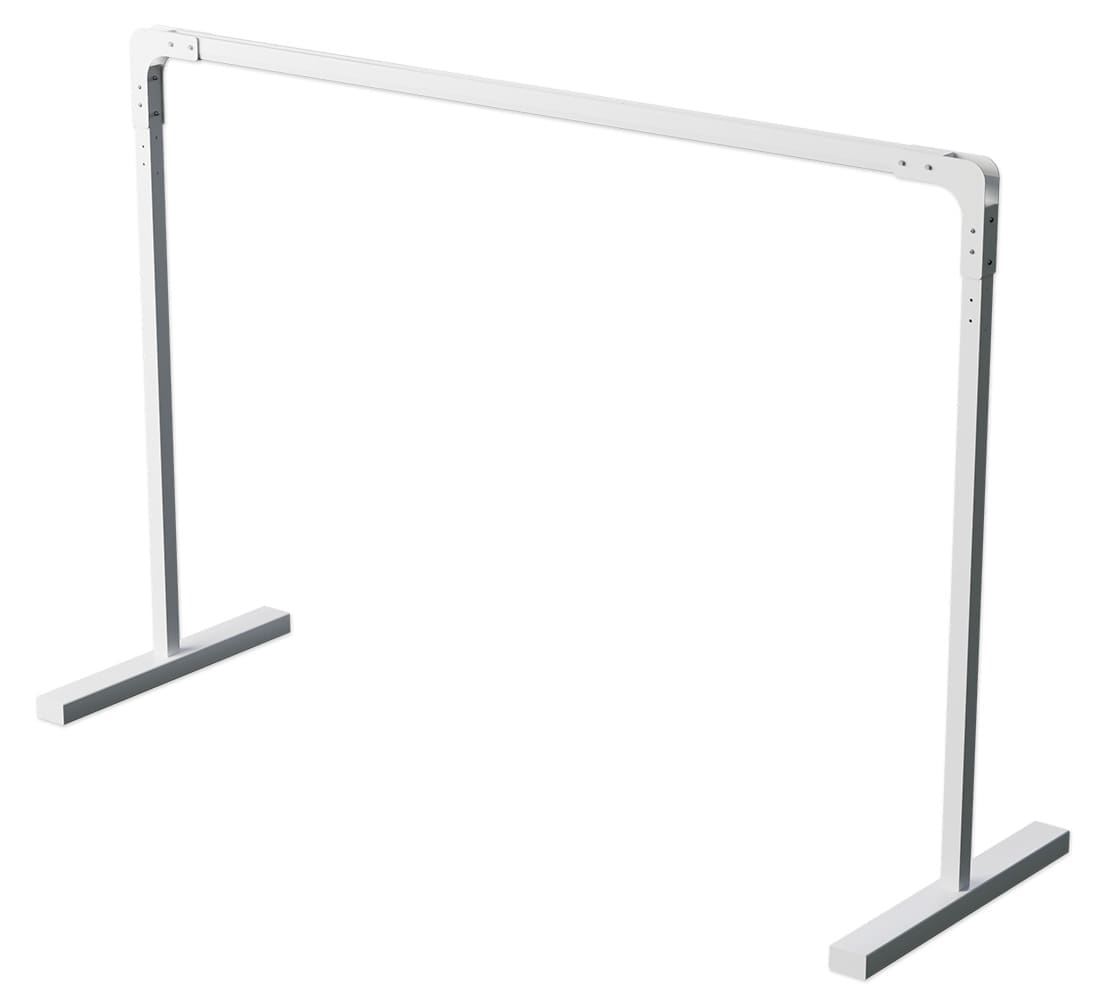

A white, metal, rectangular frame with two vertical legs and flat feet, the SteadyTrack Patient Lift System by Mackworth offers a minimalistic, tabletop-free base ideal as the foundation for an Assisted Mobility Lift or Home Care Lift System.

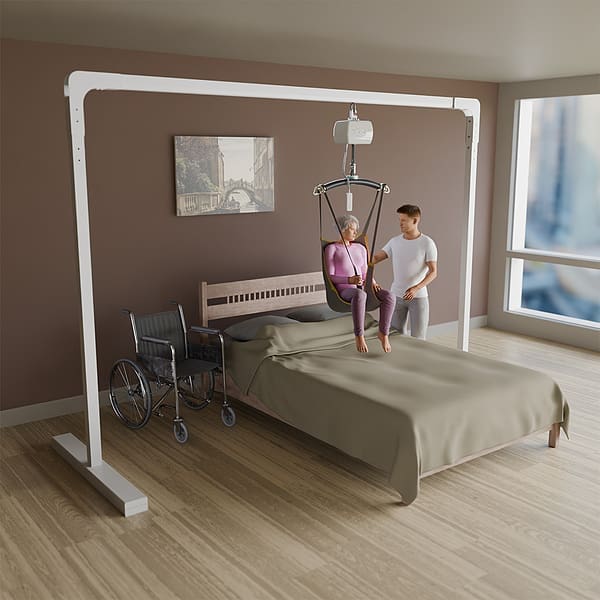

A caregiver uses the SteadyTrack Patient Lift System by Mackworth above a bed in a bright room to assist an elderly person, with a wheelchair close by.
A close-up of the SteadyTrack Patient Lift System by Mackworth shows its white metal rectangular frame with bolted joints, likely part of an overhead lift, set against a plain white background.
Gallery Thumb
Gallery Thumb
Gallery Thumb
Gallery Thumb
Logo featuring the word ACCESS in yellow, with a stylized, geometric A resembling a compass and ruler. A yellow line underlines the text, forming part of the A and extending beneath the word.

SteadyTrack Patient Lift System by Mackworth

Mackworth Logo

The Mackworth SteadyTrack is a portable, freestanding patient lift system designed for safe and efficient transfers. Built from lightweight aluminum, it offers exceptional strength and stability while supporting track lengths up to 22 feet. Easy to assemble, disassemble, and relocate, the SteadyTrack provides a flexible lifting solution for a wide range of care environments.

Get a Free Quote
  • Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available
SteadyTrack Patient Lift System

The Mackworth SteadyTrack is a high-performance, freestanding patient lift system that delivers safe, reliable lifting without the need for permanent installation. Designed to accommodate track lengths up to 22 feet, it allows caregivers to create flexible lifting solutions tailored to various care settings.

Constructed from lightweight yet durable aluminum, the SteadyTrack combines impressive lifting capacity with exceptional stability, making it one of the strongest portable lift stands available. Its simple design enables quick assembly and disassembly, allowing it to be easily moved and redeployed wherever lifting assistance is needed. Ideal for healthcare facilities, rehabilitation centers, and home care environments, the SteadyTrack offers a safe and adaptable solution for both caregivers and patients.

Features
  • Easy & Quick Assembly – Avoid fixed installation and related costs.
  • Multiple Length Option – Accommodates any length up to 22′.
  • Weight Capacity – Transfer patients up to 600 lbs.
  • Lift Options – Available for use with Mackworth portable and fixed lifts.
  • Movement Confidence – Providing steady, safe, and comfortable transfers for both patient and caregiver.
Specifications
Overall Height85” – 93”
Lifting Range, Height:73.5” – 81.5”
Overall Length:*93.35” – 275.60”
Lift Travel Length:*74.5” – 177.5”
Distance Between Vertical Supports:*99.25” – 202”
Distance (Inside) between Post Bases:*81.10” – 263.99”
Base Length:45″
Base Width:6”

* Depending on track length. Available track lengths are 95”, 144”, 198” and 264″. Please Note: The 144”, 198” and 264″ length are higher profile for added strength.

Downloads
SteadyTrack - Installation Guide

Have Questions?

Need help choosing or installing a Ceiling Lift? Our experts are ready to assist!
Contact Us
Free Standing Overhead Lift Systems

Freqently Asked Questions

What is a Free Standing Overhead Lift System?
A Free Standing Overhead Lift System is a ceiling-independent patient lifting solution that uses a self-supporting track structure. It allows caregivers to safely transfer individuals between beds, wheelchairs, bathrooms, and other locations without requiring modifications to the building's ceiling.
What are the benefits of a Macworth Free Standing Overhead Lift System?
Macworth Free Standing Overhead Lift Systems provide safe and efficient patient handling while reducing caregiver strain and the risk of injury. They offer flexible installation options, can be relocated if needed, and are ideal for facilities or homes where ceiling-mounted tracks are not feasible.
Where can a Macworth Free Standing Overhead Lift System be installed?
These systems can be installed in a variety of environments, including hospitals, rehabilitation centers, long-term care facilities, assisted living communities, and private homes. Because they are self-supporting, they do not require structural ceiling support.
What weight capacities are available for Macworth Free Standing Overhead Lift Systems?
Macworth systems are designed to accommodate a wide range of patient needs and are available with various weight capacities. The appropriate capacity depends on the lift motor selected and the specific application. Consult product specifications or a Macworth representative for exact capacity options.
Can a Free Standing Overhead Lift System be customized for specific care environments?
Yes. Macworth Free Standing Overhead Lift Systems can be configured in different track lengths and layouts to meet the unique needs of a room or care setting. Custom configurations help maximize coverage, accessibility, and transfer efficiency for both patients and caregivers.
