Luma L Through-Floor Lift by Savaria

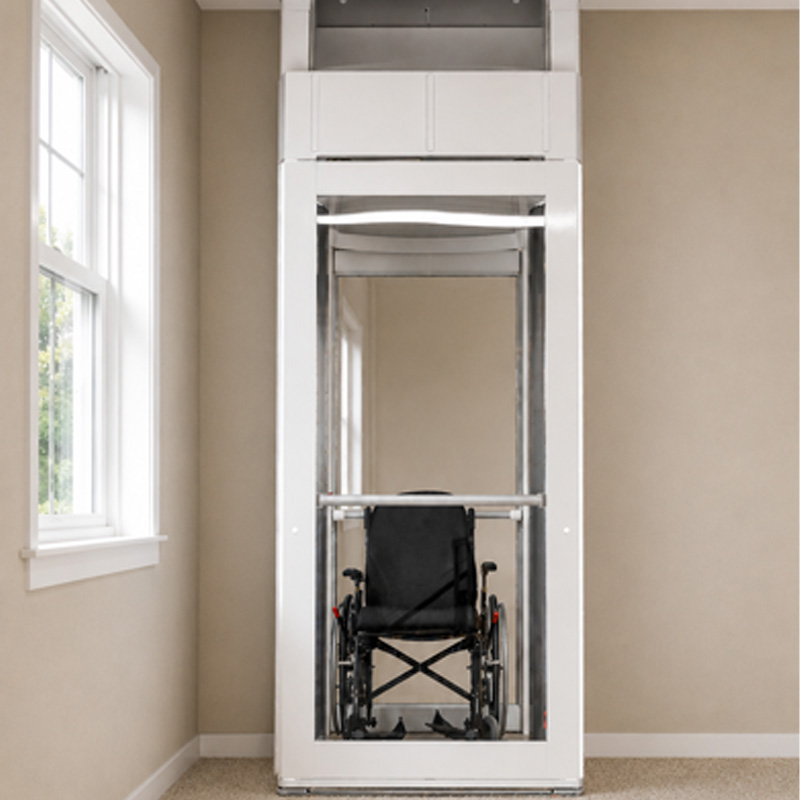

The Savaria Luma L is a stylish through-floor lift designed to provide convenient access between two levels of your home without the need for a traditional elevator shaft or pit. With its larger cabin and wider clear doorway, the Luma L provides additional room for many mobility devices, including walkers, rollators and slim-line wheelchairs.
Its self-supporting design allows the lift to be installed in a variety of locations throughout an existing home, while the fully enclosed acrylic cabin, recessed lighting and clean white finish give it a refined appearance that blends naturally with your home’s interior.
- Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available

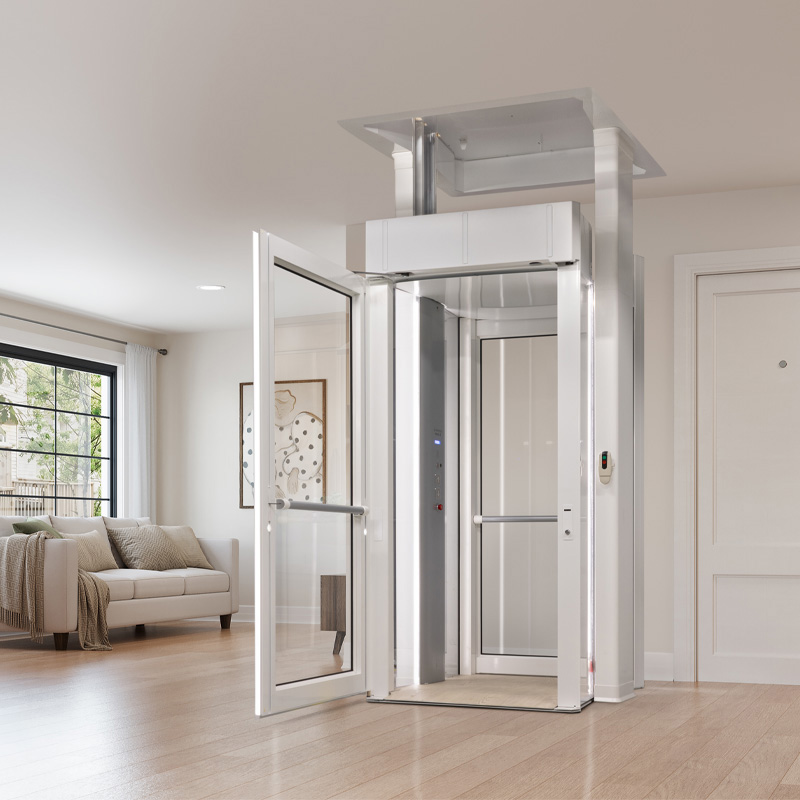

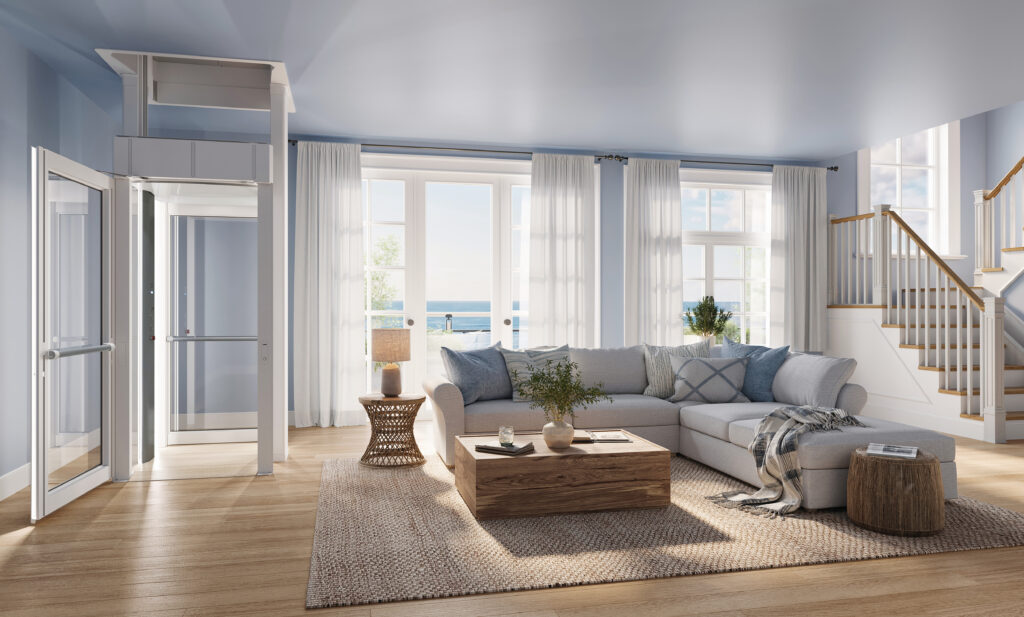

Designed to Look at Home
Accessibility equipment doesn’t have to look industrial. The Luma L combines practical mobility features with a clean, contemporary design.
The enclosed cabin uses clear acrylic panels to provide an open feeling while maintaining a secure enclosure. Recessed lighting adds visibility inside the cabin, while the white powder-coated finish provides a neutral appearance that works with a wide variety of home interiors.
A quiet winding-drum drive system and self-supporting rail structure help keep the design streamlined without requiring a separate machine room.
Key Features
- 500 lb. standard capacity
- 31½” W × 47¼” L cabin
- 32½” clear door opening
- Quiet winding-drum drive
- Clear acrylic cabin panels
- Recessed interior lighting
- Full-width handrail
- Ventilation fan
- Non-skid flooring
- Illuminated controls
- Sloped entry threshold
Always verify your mobility device’s dimensions and weight to ensure proper fit.
Easy, Accessible Operation
The Luma L is designed with straightforward controls that are easy to operate.
Illuminated controls allow users to operate the lift between the two levels, while the in-cabin status panel provides information about the lift’s operation.
Two included RF remote controls allow the lift to be summoned from either level without requiring the user to enter the cabin first.
Savaria Link Remote Monitoring
For additional support, the Luma L can be equipped with Savaria Link.
Using your home’s Wi-Fi connection, the system allows the installing dealer to remotely monitor the lift and receive notifications about certain faults. This can help the dealer identify potential issues and provide faster troubleshooting when service is needed.
Easy Installation
The Luma L is designed for installation in existing homes and typically takes one to two days once site preparation is complete. The lift is delivered semi-assembled to the local dealer, helping streamline installation.
Safety Features
The Luma L includes several built-in safety features for dependable everyday operation:
- Emergency stop and alarm
- Obstruction detection sensors
- Door interlock system
- Overspeed protection
- Sloped entry threshold
- Non-skid cabin flooring
Available Options
Straight-Through Access
Add a second door for entry and exit from opposite sides of the cabin.
Power Door
An optional automatic door opens when the lift reaches the landing for easier entry and exit.
Folding Seat
A flip-up seat is available for users who don’t need a mobility device. The seat has a 220 lb. capacity.
Short Cabin
A 75-inch cabin option is available for homes with lower ceiling heights.
One Touch Alert
The Luma L includes One Touch Alert as standard equipment.
With the push of a button, the system can connect the user with a pre-programmed emergency contact list, providing two-way communication when assistance is needed.
Please note: One Touch Alert requires an owner-supplied prepaid nano SIM card and is not compatible with 5G or eSIM cards.
More Information
Luma L Specifications
| Specification | Luma L |
|---|---|
| Application | Residential, Indoor |
| Standard Capacity | 500 lb (227 kg) |
| Motor | 24 VDC, 3 hp (2.1 kW) gear type |
| Maximum Travel | 165¼” (4,200 mm), 2 stops |
| Cabin Size | 31½”W × 47¼”L × 78¾”H |
| Floor Cutout | 46″W × 51â…›”L |
| Nominal Speed | 20 ft/min (0.10 m/s) |
| Drive System | Winding drum |
| Minimum Ceiling Height – Upper Level | 94½” |
| Minimum Ceiling Height – Lower Level | 82¾” |
| Maximum Floor-to-Ceiling Distance | 260″ |
| Power Supply | 110–240 VAC, single phase, 5A |
| One Touch Alert | Standard |
| Savaria Link | Optional |
| Warranty | 36 months against defective parts |
An optional short cabin is available with a 75-inch height. Full warranty terms and maintenance requirements apply.
