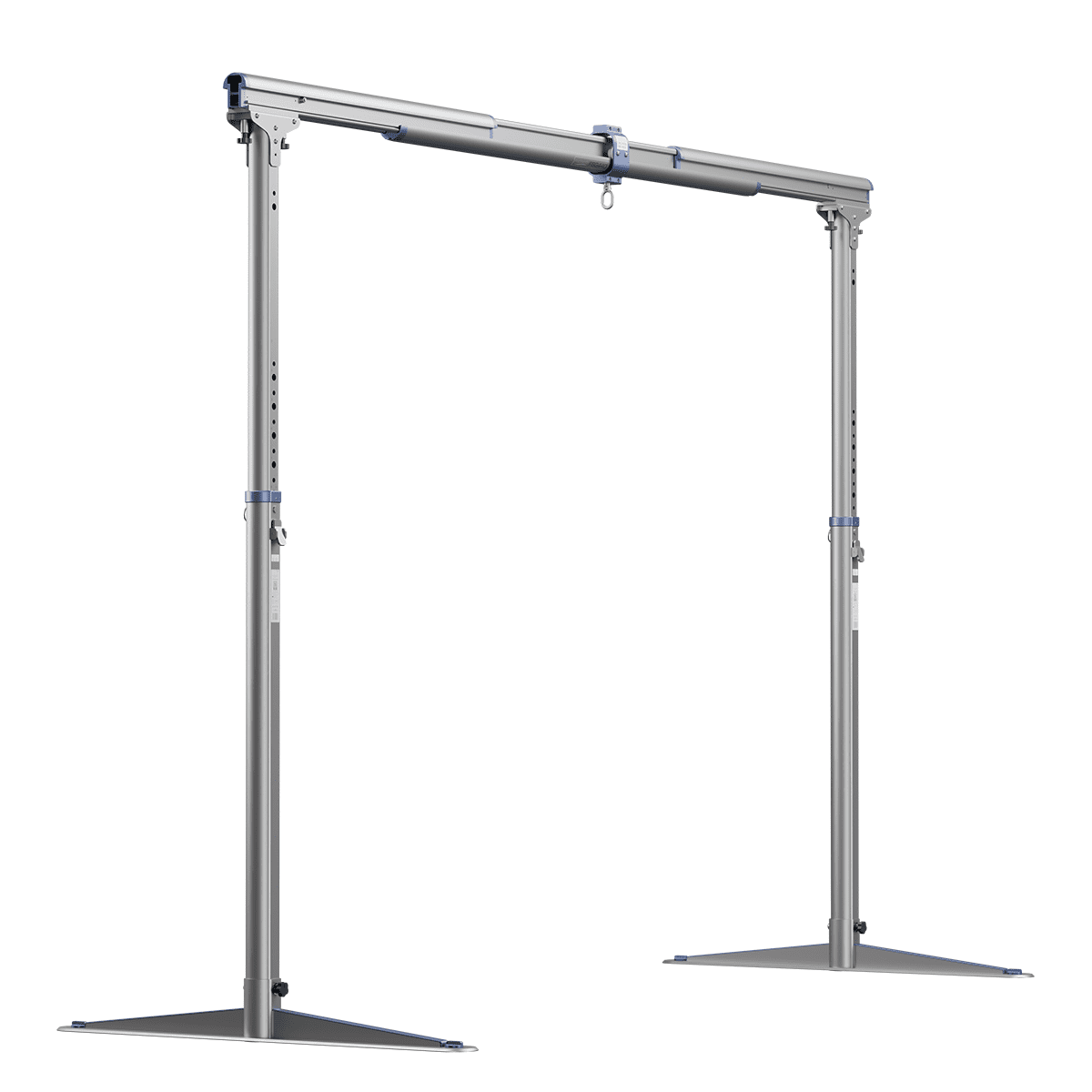

The FSG 440 Gantry by Mackworth is a portable aluminum crane with adjustable height, a horizontal beam on two stable legs, and a central lifting hook—similar to a Portable Ceiling Lift System.
The FSG 440 Gantry by Mackworth is a freestanding metal system with two vertical legs, a horizontal beam, and an adjustable central bracket, designed as a mobile ceiling lift for supporting loads. Shown against a plain white background.

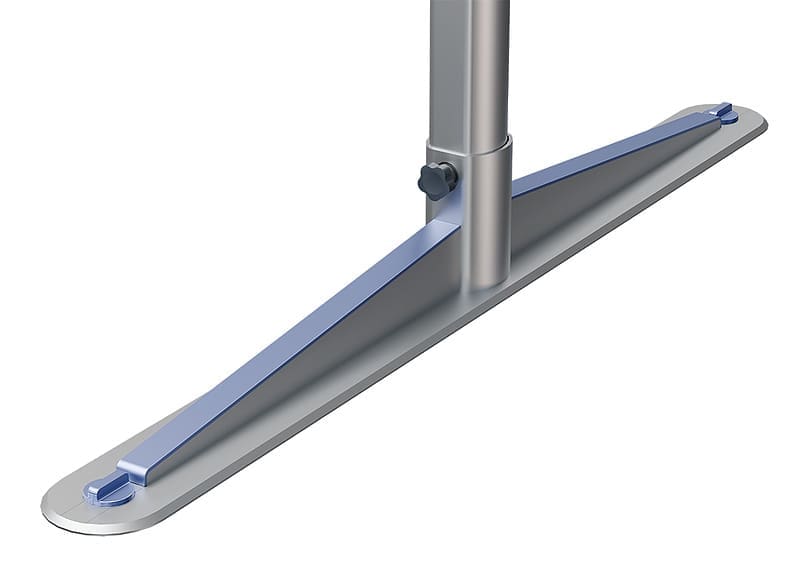

Close-up of the FSG 440 Gantry by Mackworth’s metallic base with angled support bars and a securing knob on a white background—perfect for use with overhead or portable ceiling lifts.
Gallery Thumb
Gallery Thumb
Gallery Thumb
Gallery Thumb
Logo featuring the word ACCESS in yellow, with a stylized, geometric A resembling a compass and ruler. A yellow line underlines the text, forming part of the A and extending beneath the word.

FSG 440 Gantry by Mackworth

Mackworth Logo

The FSG 440 Free Standing Overhead Lift Gantry provides a safe and convenient way to transfer individuals with limited mobility while reducing strain on caregivers. Portable, tool-free to assemble, and compatible with the Mackworth CP440P, it supports up to 440 lbs. (200 kg).

Get a Free Quote
  • Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available
Free Standing Overhead Lift Systems
Model: FSG 440

The FSG 440 Free Standing Overhead Lift Gantry helps caregivers safely transfer individuals between beds, chairs, and other surfaces with less physical effort. Easy to transport and assemble without tools, it offers a cost-effective lifting solution while promoting comfort, dignity, and safety. When used with the Mackworth CP440P portable lift, it supports a safe working load of 440 lbs. (200 kg).

Features
  • Greater Independence at Home – Allows end users to stay in their own home. Providing a safe, dignified, and comfortable transfer for both end user and caregiver.
  • No Structural Alterations – No structural alterations are required to the room or ceiling.
  • Easy Assembly – Tool-free assembly may be completed by one person (two person assembly is recommended).
  • Lift Capacity – Transfer Patients up to 440 lbs. (200 kg)
  • Adjustable Length – Can be assembled to suit a wide range of applications and length is adjustable.
Specifications

User Weight Limit (Max Rated Load): 440 lbs. (200 kg)
Frame Construction Material: Aluminum
Total Weight (Boxed): 59.74 lbs. (27.1 kg)
Legs Weight: 8.37 lbs. (3.8 kg)
Track & Trolley Weight: 31.96 lbs. (14.5 kg)

Downloads
FSG440 - User Guide
FSG440 - Set Up Guide

Have Questions?

Need help choosing or installing a Ceiling Lift? Our experts are ready to assist!
Contact Us
Free Standing Overhead Lift Systems

Freqently Asked Questions

What is a Free Standing Overhead Lift System?
A Free Standing Overhead Lift System is a ceiling-independent patient lifting solution that uses a self-supporting track structure. It allows caregivers to safely transfer individuals between beds, wheelchairs, bathrooms, and other locations without requiring modifications to the building's ceiling.
What are the benefits of a Macworth Free Standing Overhead Lift System?
Macworth Free Standing Overhead Lift Systems provide safe and efficient patient handling while reducing caregiver strain and the risk of injury. They offer flexible installation options, can be relocated if needed, and are ideal for facilities or homes where ceiling-mounted tracks are not feasible.
Where can a Macworth Free Standing Overhead Lift System be installed?
These systems can be installed in a variety of environments, including hospitals, rehabilitation centers, long-term care facilities, assisted living communities, and private homes. Because they are self-supporting, they do not require structural ceiling support.
What weight capacities are available for Macworth Free Standing Overhead Lift Systems?
Macworth systems are designed to accommodate a wide range of patient needs and are available with various weight capacities. The appropriate capacity depends on the lift motor selected and the specific application. Consult product specifications or a Macworth representative for exact capacity options.
Can a Free Standing Overhead Lift System be customized for specific care environments?
Yes. Macworth Free Standing Overhead Lift Systems can be configured in different track lengths and layouts to meet the unique needs of a room or care setting. Custom configurations help maximize coverage, accessibility, and transfer efficiency for both patients and caregivers.
