Fixed Ceiling Lift by Mackworth
The TX600 low-profile ceiling lift offers exceptional lifting height while providing safe, comfortable transfers for individuals with reduced mobility. Designed to reduce strain on caregivers, it delivers reliable support, dignity, and comfort whenever needed.
- Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available
Fixed Ceiling Lifts
Model: TX600

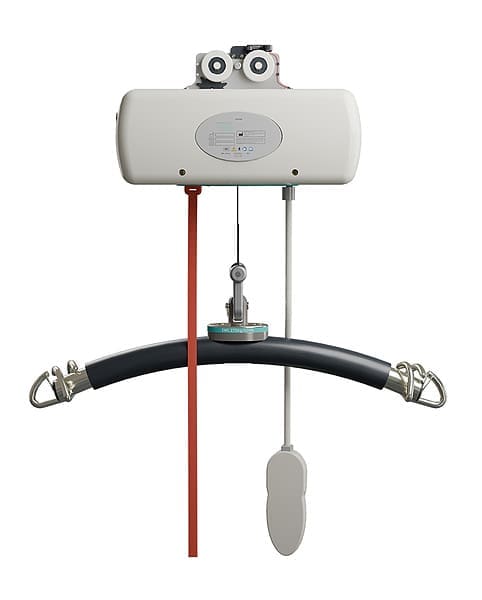

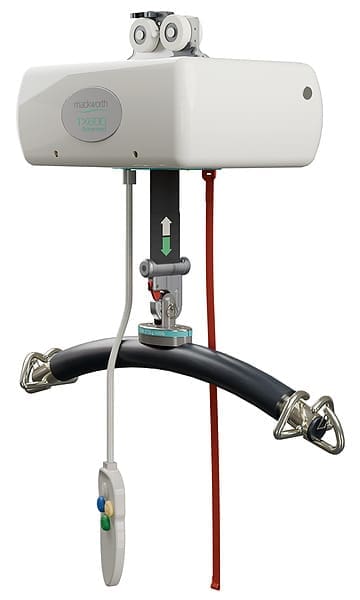

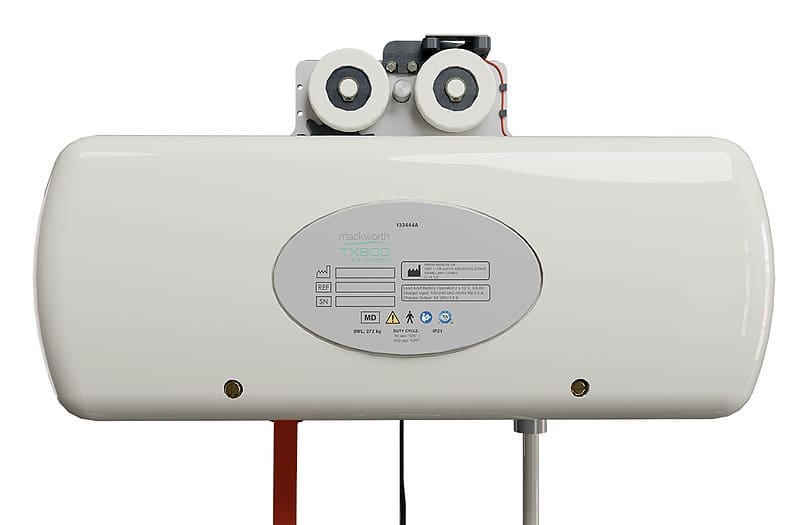

The Mackworth TX600 is a low-profile, fixed ceiling track lift that provides greater lifting height than other lift options. Always ready for use, it enables the safe and efficient transfer of individuals with limited mobility while minimizing physical strain and risk for caregivers.
Designed with safety, dignity, and comfort in mind, the TX600 works with a compatible fixed ceiling track system and patient handling sling to deliver smooth, reliable transfers in a variety of care environments.
Features
- Low Profile – Low profile ceiling lift with 78.74” (2000mm) lifting range.
- Wet Rooms & Bathrooms – Ideal for use in wet rooms and bathrooms.
- Smooth High Torque Motor – Smooth running lifting tape and high torque motor, with powered traverse option available.
- Lift Capacity – Transfer patients up to 600 lbs.
- Discreet Design – Unobtrusive design which doesn’t take up floor space or cause trip hazards, and is complete with in-track charging point.
Specifications
Lift Motor: 24 VDC
Traverse Motor (optional at time of purchase): 24 VDC
Charger Input: 100-240V AC 50/60Hz 1.5A
Charger Output: 24 VDC/1.0 A
Batteries: 24 VDC (2x 12 VDC) 5.0 Ah (SLA)
Lift Case: Flame Retardant ABS
Lift Case Degree of Protection: IP21
Handset Degree of Protection: IP67
Operation: Handset (Pneumatic)
Sound Level: 54 dB(A)
Traverse Speed (SWL) 1, 2, 3, 4: 1.58 “/s (40.12 mm/s), 3.87 “/s (98.24 mm/s), 5.90 “/s (150.00 mm/s), 7.75 “/s (196.88 mm/s)
Traverse Speed (No Weight) 1, 2, 3, 4: 1.79 “/s (45.48 mm/s), 4.11 “/s (104.34 mm/s), 6.23 “/s (158.32 mm/s), 7.87 “/s (200.00 mm/s)
Traverse Stopping Distances (SWL) 1, 2, 3, 4: 0.24″ (6 mm), 1.22″ (31 mm), 2.28″ (58 mm), 3.31″ (84 mm)
Traverse Stopping Distances (No Weight) 1, 2, 3, 4: 0.24″ (6 mm), 1.22″ (31 mm), 2.36″ (60 mm), 3.50″ (89 mm)
Traverse Duty Cycle: 25% use, 75% rest (90 seconds use, 270 seconds rest)
Lifting Speed (SWL): 1.16 “/s (29.52 mm/s)
Lifting Speed (No Weight): 2.54 “/s (64.52 mm/s)
Lowering Speed (SWL): 2.14 “/s (54.48 mm/s)
Lowering Speed (No Weight): 2.39 “/s (60.75 mm/s)
Stopping Distances Up (SWL): 0.39″ (10 mm)
Stopping Distances Up (No Weight): 0.94″ (24 mm)
Stopping Distances Down (SWL): 1.54″ (39 mm)
Stopping Distance Down (No Weight): 1.30″ (33 mm)
Raising/Lowering Duty Cycle: 15% use, 85% rest (90 seconds use, 510 seconds rest)
Emergency Down Stopping Distance (SWL): 1.54″ (39 mm)
Emergency Down Stopping Distance (No Weight): 1.38″ (35 mm)
Battery Capacity for Raising/Lowering (SWL): 35 Lifts (Top 500 mm of Lift Tape)
Battery Capacity for Raising/Lowering (200 kg / 440 lbs.): 60 Lifts (Top 500 mm of Lift Tape)
Battery Capacity for Raising/Lowering (100 kg / 220 lbs.): 120 Lifts (Top 500 mm of Lift Tape)
