Savaria Vuelift Elevators
Change your perception of what a home elevator can be. The Savaria Vuelift takes the elevator out of the dark and into the light as the focal point of your home. A stand-alone solution that does not require a hoistway to be constructed, Vuelift ascends elegantly within existing architecture, making it an ideal choice for renovations.
Or, allow Vuelift to inspire the design of your new residence. In any scenario, Vuelift is an elegant way to achieve peace of mind without compromising style – your investment in beauty and convenience for today also ensures mobility and independence for the future.
Product Options
Savaria Vuelift Round
Not all glass is created equal. Glass Vuelift models are crafted from crystal clear low-iron silica glass for ultimate clarity with no green hue. Acrylic Vuelift models are built with premium clear acrylic panels – which far exceed code requirements for strength and won’t discolor over time.
Savaria Vuelift Octagonal
Your round or octagonal Savaria Vuelift is designed and built with care using the finest materials and reliable components to meet or exceed the strictest safety guidelines. The result is a home elevator that transcends convenience to deliver a ride that is an experience in itself.
Savaria Vuelift Mini
Remove the barriers to signature style, whether in a country manor, urban townhome or penthouse condo. The Vuelift Mini elevates your home as a stunningly beautiful feature that also helps make the space more liveable.

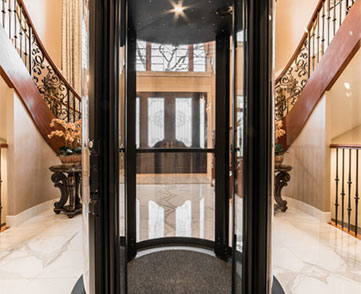

Savaria Vuelift Round
The Savaria Vuelift Round elevator is designed and built with care using the finest materials and reliable components to meet or exceed the strictest safety guidelines. The result is a home elevator that transcends convenience to deliver a ride that is an experience in itself.
With graceful curves and a cylindrical hoistway, the Vuelift Round elevator makes a beautiful addition to the architecture of any home. While ideal for renovations, it can also be the centerpiece of a new home design: many architects place the cylindrical elevator within a spiral staircase or mirror its elegant curves in other design elements.
Features
- Automatic operation
- Illuminated push-button hall call stations
- Integrated touch-pad phone
- Automatic on/off LED cab lights and ventilation fan
- Safety features include: emergency battery back-up for lowering and interior lighting, emergency stop, and alarm buttons, emergency manual lowering, safety brakes
Specifications
- Capacity: 840lb (381kg) – 950Ib (431Kg)
- Maximum travel distance: 50ft (15.2m), 55 ft (16.7m) with variance, and up to 6 stops
- Speed: 32 ft/min (0.16 m/s)
- Cab floor area: 13 sq.ft (1.3sqm)
- Power supply: 230V/1PH/50–60Hz (30 amps) and one 120V/1PH/50–60Hz (15 amps)

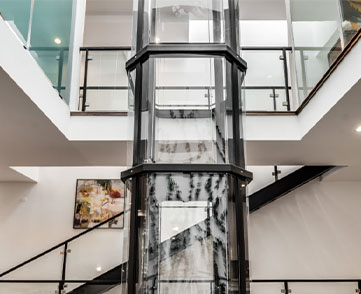

Savaria Vuelift Octagonal
Maximize space with the modern, unique octagonal prism shaped elevator that sparkles like a faceted crystal as the centerpiece of your home. Vuelift® Octagonal has a minimal
footprint, allowing it to fit into existing stairwells or spaces where a standard elevator may not be possible. Fabricated from
either ultra-strong clear acrylic with 840 lb capacity, or low-iron silica glass for up to 950 lb, it is suited for installations where higher capacity is desired.
Features
- Automatic operation
- Illuminated push-button hall call stations
- Integrated touch-pad phone
- Automatic on/off LED cab lights and ventilation fan
- Elevator door interlocks
- Safety features include: emergency battery back-up for lowering and interior lighting, emergency stop, and alarm buttons, emergency manual lowering, safety brakes
- Pitless with short ground floor ramp (acrylic only)
Specifications
- Capacity: 840lb (381kg) – 950Ib (431Kg)
- Maximum travel distance: 50ft (15.2m), 55 ft (16.7m) with variance, and up to 6 stops
- Speed: 32 ft/min (0.16 m/s)
- Cab floor area: 12 sq.ft (1.2sqm)
- Power supply: 230V/1PH/50–60Hz (30 amps) and one 120V/1PH/50–60Hz (15 amps)
- Straight through or 90-degree entry/exit configurations

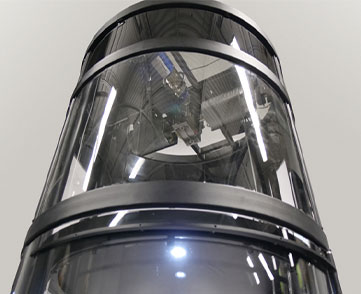

Savaria Vuelift Mini
Features
- Automatic operation
- Available in silica glass or clear acrylic
- Integrated touch-pad phone
- Automatic on/off LED cab lights and ventilation fan
- Elevator door interlocks
- Safety features include: emergency battery back-up for lowering and interior lighting, emergency stop, and alarm buttons, emergency manual lowering, safety brakes
- Comes in black (standard), optional: white, silver or custom powder coat
Specifications
- Capacity: 500lb (227kg)
- Footprint: 49.75 in (1.26 m) diameter
- Pit depth: 3 in (76 mm)
- Maximum travel distance: 50ft (15.24m), up to 6 stops
- Speed: 30 ft/min (0.15 m/s)
- Cab floor area: 8.25 sq.ft (0.75sqm)
- Power supply: 30A, 230V, single-phase, 50/60Hz
- Applications: Residential, indoors
- Standard Capacity: 840 lb (381 kg), 950 lb (431kg)
- Maximum Travel Distance: 50′ (15.24 m)
- Nominal Speed: 32 ft/min (0.16 m/s) 40 ft/min (0.2 m/s)
- Power Supply: 230V/1PH/50–60Hz (30 amps) and 120V/1PH/50–60Hz (15 amps)
- Pit Depth: 4″-12″ (102mm-305 mm)
- Automatic operation
- Illuminated push-button hall
call stations - Bifold glass cab gate
- Balcony attachment or throughthe-floor setup
- Integrated touch-pad phone
- Automatic on/off LED cab lights and
ventilation fan - Textured black powder-coat frame
- Emergency battery back-up for
cab lighting and lowering - Manual lowering
- Emergency alarm and stop switch
- Electrical circuit overspeed
- Safety brakes
- Elevator door interlocks
- In-use indicator lights on hall
call stations
Documents:
Savaria Vuelift Elevator Drawings
The following are PDF and DWG files that can be downloaded and are intended for architectural use.
Vuelift Round Glass
- Vuelift Round Glass Type 1 (Plan).pdf
- Vuelift Round Glass Type 1 (DWG)
- Vuelift Round Glass Type 2 & 3 (Plan)
- Vuelift Round Glass Type 2 & 3 (DWG)
Vuelift Round Acrylic
- Vuelift Round Acrylic Type 1 (Plan)
- Vuelift Round Acrylic Type 1 (DWG)
- Vuelift Round Acrylic Type 2 & 3 (Plan)
- Vuelift Round Acrylic Type 2 & 3 (DWG)
Vuelift Octagonal Glass
- Vuelift Octagonal Glass Type 1 (Plan)
- Vuelift Octagonal Glass Type 1 (DWG)
- Vuelift Octagonal Glass Type 2 & 3 (Plan)
- Vuelift Octagonal Glass Type 2 & 3 (DWG)
- Vuelift Octagonal+ Glass Type 1 (Plan)
- Vuelift Octagonal+ Glass Type 1 (DWG)
- Vuelift Octagonal+ Glass Type 2 & 3 (Plan)
- Vuelift Octagonal+ Glass Type 2 & 3 (DWG)
Vuelift Octagonal Acrylic
- Vuelift Octagonal Acrylic Type 1 (Plan)
- Vuelift Octagonal Acrylic Type 1 (DWG)
- Vuelift Octagonal Acrylic Type 2 & 3 (Plan)
- Vuelift Octagonal Acrylic Type 2 & 3 (DWG)
Vuelift Mini Glass
- Vuelift Mini Round Glass
- Vuelift Mini Round Glass (DWG)
- Vuelift Mini Round Glass Type 2
- Vuelift Mini Round Glass Type 2 (DWG)
