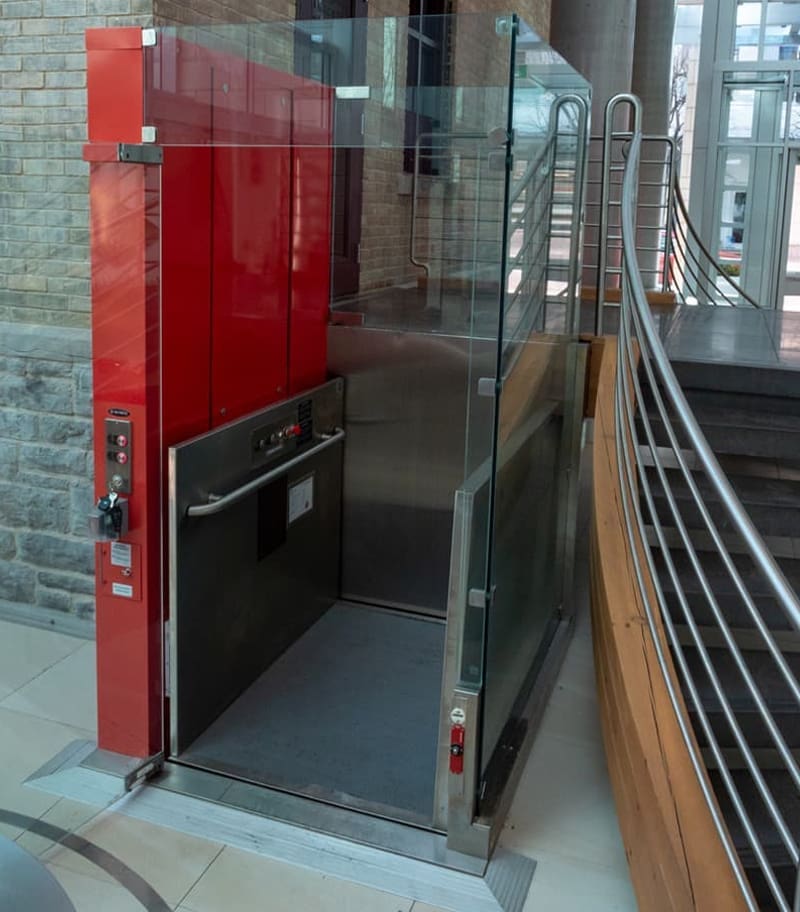

V-1504 Prestige Vertical Platform Lift by Savaria
The Savaria V‑1504 Prestige is a high-end, frameless vertical platform lift made with half‑inch tempered structural glass — combining elegant design with robust accessibility.
- Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available
V-1504 Lux Vertical Platform Lift
The Savaria V‑1504 Prestige Vertical Platform Lift offers premium, ultra-modern vertical mobility for commercial or upscale residential settings. Featuring half-inch structural tempered glass and no visible framing, this lift delivers a sleek, transparent design that enhances its surroundings without compromising performance. With a 750 lb capacity and a quiet hydraulic drive, the V‑1504 Prestige supports up to four stops over as much as 23 feet of travel (depending on code). It comes with flexible entry/exit configurations (same-side, straight-through, or 90°) and standard safety features including an emergency stop, manual lowering device, keyed controls, safety brake, and locking doors. Its machine-room-less design simplifies installation, while its elegant glass structure makes it a striking architectural statement.
Features:
- Luxury lift built from half-inch structural tempered glass with no visible frame for indoor commercial or residential projects.
- Carries a wheelchair and passenger between 2 stops, up to 6′ of travel; 750 lb capacity.
- Framed version available for 3 stops and up to 12′ of travel.
- Doors and gates available; optional paint colors available for tower and platform
- 20 ft/min hydraulic drive system operated by constant pressure controls; no machine room needed.
- ADA-Compliant or custom platform sizes; same-side, straight-through or 90º entry and exit.
The nuts and bolts
- Flexible design and feature options: In stainless steel or painted in a creative optional color, this lift will make a distinct addition to any commercial lobby.
- Quiet and reliable hydraulic drive: Smooth start, stop and overall ride that works dependably.
- Machine roomless: Enclosed drive system means no machine room is required, making the installation process easier.
- Other standard features: 36″ x 54″ standard platform, continuous pressure button operation, modular rail construction for easy construction, handrail, automatic battery recharging system.
- Standard finishes: With half-inch structural tempered glass and no visible frame, this lift is the ultimate statement for creating barrier-free access in commercial applications. Tower is finished in primer grey. The framed Prestige version has frameless glass doors and 3″ x 3″ structural tubing in each corner. The structure underneath the stainless steel cladding is finished in primer gray or painted in the optional color of the lift.
- Safety features: Emergency stop button on car, non-skid platform, manual lowering device, 42 1/8″ (1070 mm) side panels, keyed car buttons and keyed call stations, safety brake, door locks.
Specifications
- Applications: Residential, commercial, indoors, outdoors.
- Standard capacity: 750 lb (340 kg).
- Maximum travel distance: 6′ (1.8 m).
- Nominal speed: 20 ft/min (0.1 m/s).
- Drive/motor: 2:1 chain hydraulic, 3 hp (2.2 kW), gear-type motor.
- Minimum pit: 3″ (76.2 mm).
- Power supply: 120 VAC, 20 amp, single phase, 60 Hz.
Options
Optional configurations: Type 1, 2, 3 and 4; Framed Prestige Type 1 only
Platform sizes:
W36″ x L48″ (914 mm x 1219 mm), Type 1, 2, 3, 4
W36″ x L54″ (914 mm x 1371 mm), Type 1, 2, 3, 4
W36″ x L60″ (914 mm x 1524 mm), Type 1, 2, 3, 4
Custom sizes up to 42″ x 60″ (1067 mm x 1524 mm)
Optional finishes: Laminated tempered glass for enclosure; a wide array of powder-coat colors in gloss, semi-gloss or textured finish are available for tower, including custom color (see color chart).
Other options: Commercial package including alarm, keyless operation, keyless hall call (subject to type of application), steel ULC fire-rated ProDoors, power gate and door operators, acrylic inserts for gate, Savaria WR-500 weather-resistant lock, folding seat, 60 mm buttons, ADA hands-free phone. Also available for USA commercial installations, the Savaria One Touch Alert System. Using an owner-supplied, pre-paid nano sim card*, this one-button system installed by your Savaria dealer, provides two-way communication to pre-programmed emergency contacts in case of emergency.
*not compatible with 5G or eSIM cards.
Case Studies
A Savaria Prestige glass wheelchair lift puts accessibility at the forefront.
