V-1504 Lux Vertical Platform Lift by Savaria
The Savaria V-1504 Lux is a luxury vertical platform lift framed in stainless steel with glass inserts, providing smooth, ADA-compliant access in both residential and commercial spaces.
- Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available
V-1504 Lux Vertical Platform Lift

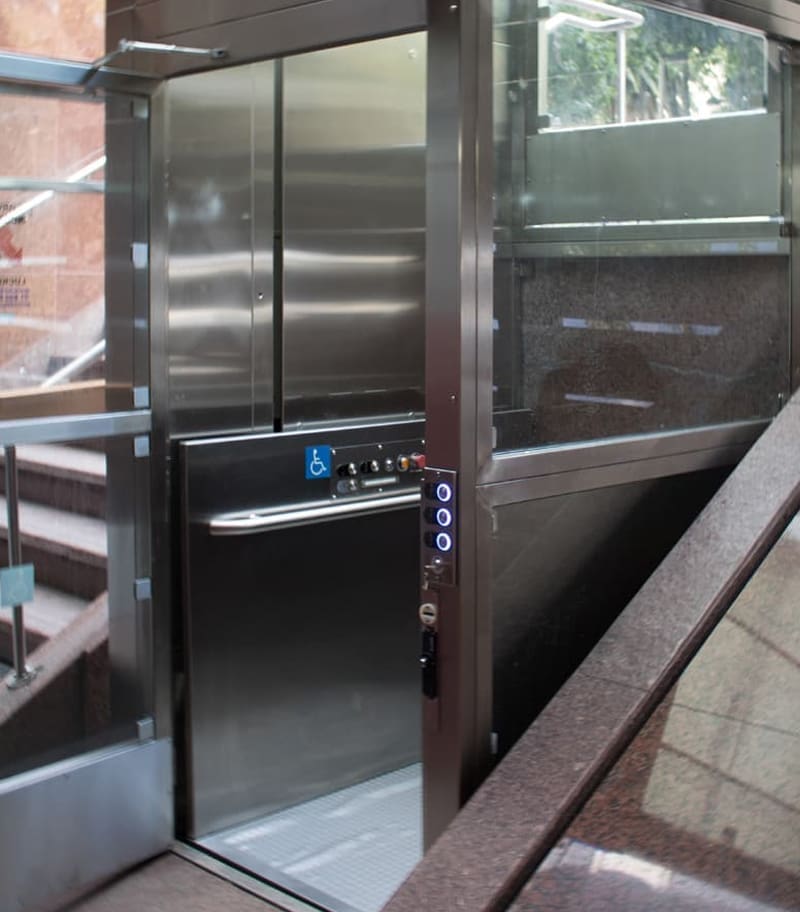

The Savaria V-1504 Lux Vertical Platform Lift delivers a premium blend of style, performance, and accessibility for both residential and commercial environments. Built with a stainless-steel frame and clear glass inserts, the Lux model offers a modern, architectural design that enhances any space. Its smooth hydraulic drive system provides a quiet, stable ride, while supporting up to 750 lbs and traveling up to 23 feet, depending on code requirements. The V-1504 Lux can be configured for same-side, straight-through, or 90-degree entry and exit, making it adaptable to a wide range of installations. With standard safety features like an emergency stop, keyed controls, safety brake, and locking doors, this lift provides reliable, ADA-compliant vertical access with a sleek, contemporary look.
Features:
- Enclosed lift, beautifully framed in stainless steel with glass inserts for luxury commercial or residential projects.
- Carries a wheelchair and passenger up to 4 stops over 23′ of travel; 750 lb capacity.
- For indoor or outdoor use; doors or gates available with inserts; optional domed top.
- ADA-compliant or custom platform sizes; same-side, straight-through or 90º entry and exit.
- 20 ft/min hydraulic drive system operated by constant pressure controls; no machine room needed.
The nuts and bolts
- The ultimate in design: This luxury lift will make a distinct addition to any commercial lobby.
- Quiet and reliable hydraulic drive: Smooth start, stop and overall ride that works dependably.
- Machine roomless: Enclosed drive system means no machine room is required, making the installation process easier.
- Other standard features: 36″ x 54″ standard platform, continuous pressure button operation, modular rail construction for easy construction, handrail, automatic battery recharging system.
- Standard finishes: Framed in 304 stainless steel no. 4 with tempered or laminated glass inserts, this lift is a beautiful complement for lobby areas, offices and public buildings.
- Safety features: Emergency stop button on car, non-skid platform, manual lowering device, 42 1/8″ (1070 mm) side panels, keyed car buttons and keyed call stations, safety brake, door locks.
Specifications
- Applications: Residential, commercial, indoors, outdoors.
- Standard capacity: 750 lb (340 kg).
- Maximum travel distance: 23′ (7 m), subject to local code, in some areas 12′ to 14′ (3.65 to 4.26 m).
- Nominal speed: 20 ft/min (0.1 m/s).
- Drive/motor: 2:1 chain hydraulic, 3 hp (2.2 kW), gear-type motor.
- Minimum pit: 3″ (76.2 mm).
- Power supply: 120 VAC, 20 amp, single phase, 60 Hz.
Options
Optional configurations: Type 1, 2, 3 and 4
Platform sizes:
W36″ x L48″ (914 mm x 1219 mm), Type 1, 2, 3, 4
W36″ x L54″ (914 mm x 1371 mm), Type 1, 2, 3, 4
W36″ x L60″ (914 mm x 1524 mm), Type 1, 2, 3, 4
Custom sizes up to 42″ x 60″ (1067 mm x 1524 mm)
Other options: Up to 4 stops, commercial package including alarm, keyless operation, keyless hall call (subject to type of application), steel ULC fire rated ProDoors, power gate and door operators, acrylic inserts for gate, Savaria WR-500 weather resistant lock, folding seat, 60 mm buttons, ADA hands-free phone. Also available for USA commercial installations, the Savaria One Touch Alert System. Using an owner-supplied, pre-paid nano sim card*, this one-button system installed by your Savaria dealer, provides two-way communication to pre-programmed emergency contacts in case of emergency.
*not compatible with 5G or eSIM cards.
