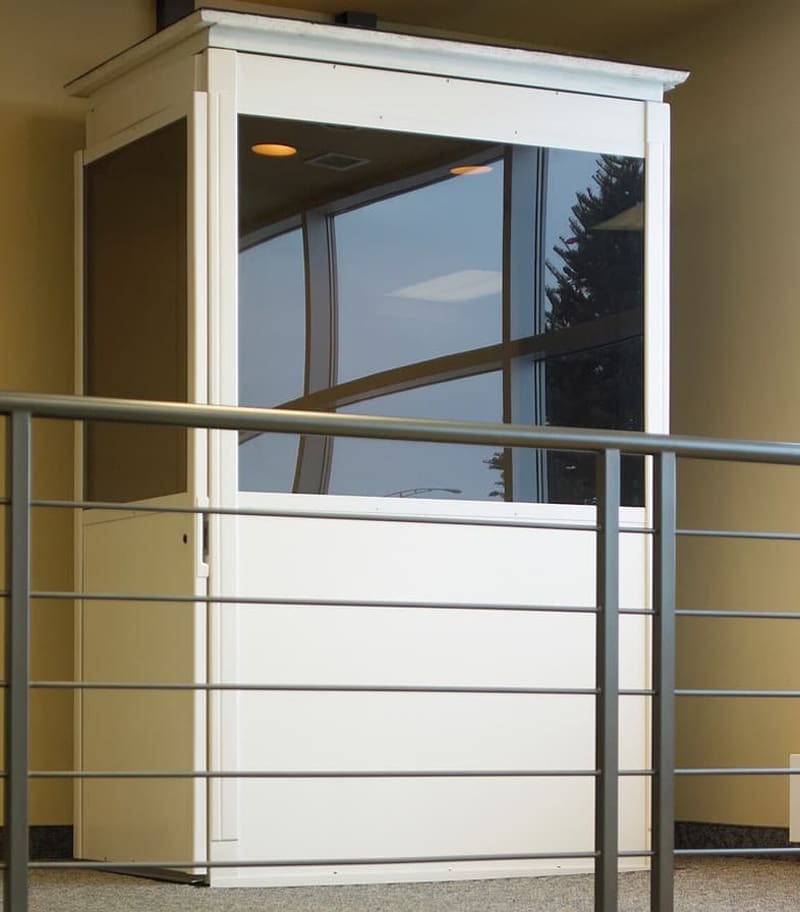

Telecab Home Lift by Savaria
The Savaria Telecab is a space-saving, through-the-floor home lift with an up to 700 lb capacity. It installs without a traditional hoistway and features modern cab panels, user-friendly controls, and built-in safety sensors, providing convenient and accessible mobility for any home.
- Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available
Telecab Home Lift
The Savaria Telecab Home Lift is a modern, through-the-floor residential elevator designed for homes without a full shaft. It has an up to 700 lb (318 kg) capacity and travels smoothly between two stops.
Its compact design requires only a small ceiling cut-out and a structural support wall for the drive tower, making installation easier than traditional elevators. The cab features a powder-coated aluminum frame with acrylic panels and is available in sizes that accommodate mobility devices comfortably.
Safety features include door interlocks, emergency-stop and alarm buttons, contact sensors, a battery-lowering system, non-slip flooring, interior lighting, and handrails — all designed to ensure safe, reliable, and convenient home mobility.
- Space-saving through-the-floor accessibility lift, built on the same drive system as the popular and robust Savaria V-1504 wheelchair lift.
- Serves 2 stops with up to 23' of travel; capacity of 500 lb to accommodate a passenger with mobility device (for 845 lb capacity.
- Non skid platform with gentle slope threshold for easy access of mobility device.
- 4 cab sizes to choose from; custom sizes also available.
- Operates by continuous pressure buttons; sensor to stop the unit if it detects an obstruction in either direction.
- Installation requires minimal construction; no hoistway required.
- Enclosed drive tower keeps mechanical components safe and out of sight.
- Full height flush door with grip handles, interior lighting inside 78" (1981mm) height cab.
Options
Optional configurations: Type 1, 2 and 5
Cab sizes:
W30″ x L46″ X H78″ (762 mm X 1168 mm x 1981 mm) Type 5 (standard)
W32″ X L53″ X H78″ (813 mm X 1346 mm X 1981 mm) Type 5
W30″ X L47″ X H78″(762 mm X 1194 mm X 1981 mm) Type 1, 2
W32″ X L54″ X H78″ (813 mm X 1372 mm x 1981 mm) Type 1, 2
Optional cab finishes: Custom color powder coat
Other options: Battery power for up/down, two-door for left and right access, keyed call station, motorized door operation, hydraulic door closer, custom cab size, flush-mount or surface-mount call send station.
*not compatible with 5G or eSIM cards.
The nuts and bolts
Features
- Innovative design: All-in-one drive tower and enclosed cab means no hoistway is needed and unit travels through a floor cut-out.
- No hoistway or pit required: Minimal construction makes the Telecab easier to install than a traditional home elevator – only a support wall and floor cutout are required.
- Modern, neutral-toned design: The unit blends into your home décor.
- Reliable, enclosed drive system: Dependable and safe operation in your home.
- Other standard features: Continuous pressure buttons to operate the unit, telephone, two interior ceiling lights, two-stops, cab size – 30″ x 46″, 78″ tall (76.2 cm x 116.8 cm, 198.1 cm tall).
- Standard finish options: White powder-coated finish, acrylic window panels in choice of clear or bronze.
- Safety features: Interior lighting, emergency stop and alarm buttons, battery lowering in case of power failure as well as manual emergency lowering, telephone, nonskid platform, sensors on the top and under-panel to stop the unit if it detects an obstruction, pressure relief valve to prevent platform overload, door interlock, and slack chain safety device.
Specifications
Applications: Residential, indoors
Capacity: 500 lb (228 kg)
Maximum travel distance: 23′ (7 m) with 2 stops
Nominal speed: 20 ft/min (0.10 m/s)
Minimum floor cutout: 36″ x 60.5″ (914 mm x 1537 mm)
Minimum overhead required: 96″ (2438 mm) to have 6″ minimum clearance by code,
92″ (2337 mm) requires variance
Drive: 2:1 roller chain hydraulic
Motor/pump: 24 VDC, 3 hp (2.1 kW) gear type
Power supply required: 110 VAC, 20 A, 60 Hz, single phase
