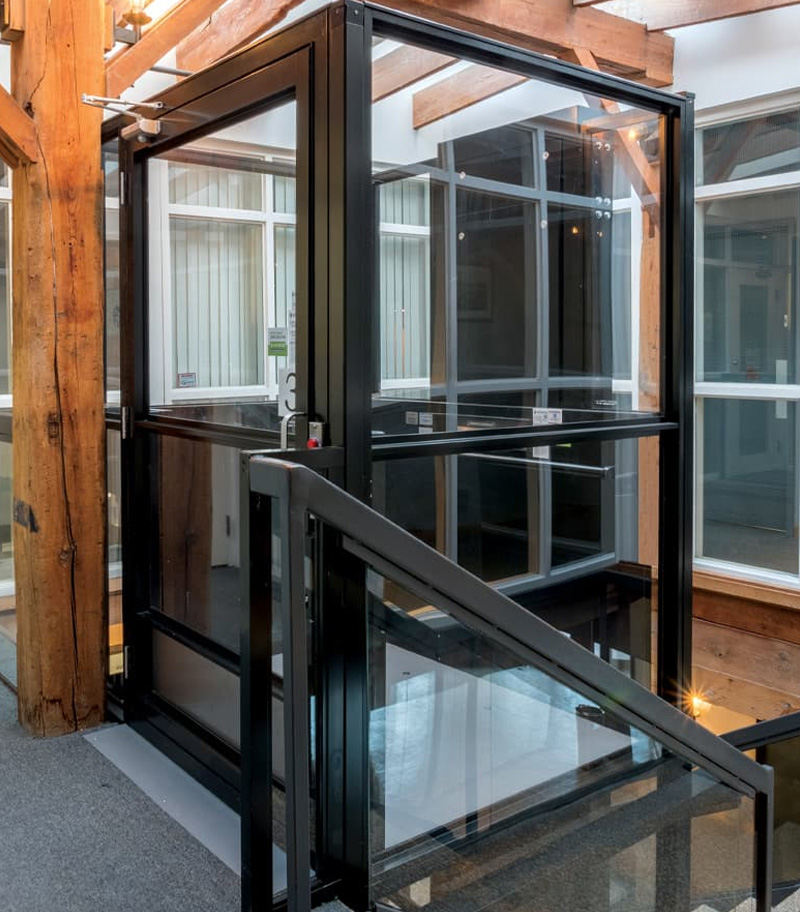

Savaria V1504 Enclosure
Gallery Thumb
Gallery Thumb
Gallery Thumb
Gallery Thumb
Gallery Thumb
Gallery Thumb
Access Logo

Savaria V-1504

Savaria-Logo

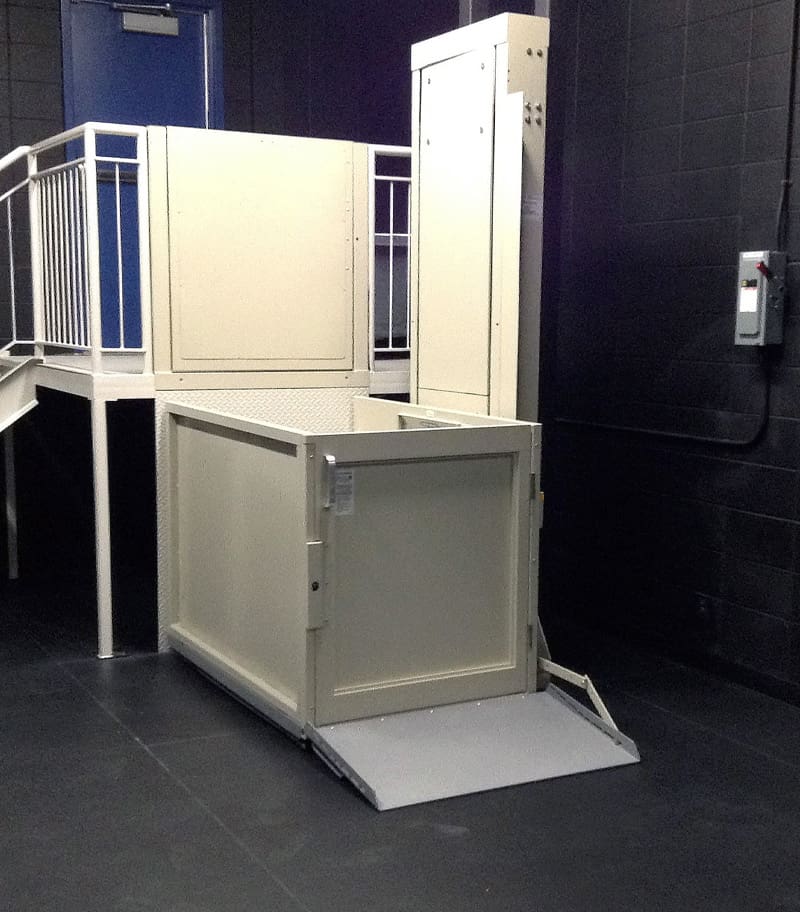

The Savaria V-1504 is a versatile vertical platform lift for indoor or outdoor access, traveling up to 23 feet with smooth, reliable performance.

Get a Free Quote
  • Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available
V-1504 Vertical Platform Lift

The Savaria V-1504 Vertical Platform Lift is a fully customizable accessibility solution designed for residential and commercial use. With travel up to 23 feet, it’s perfect for deck access, mezzanines, stages, or multi-level buildings. Built for safety and smooth performance, the V-1504 can be installed indoors or outdoors, with options like automatic doors, glass panels, and custom finishes to suit any environment.

Features:
  • Durable wheelchair lift for commercial or residential access, available in multiple entry/exit configurations and platform sizes
  • Reliable, easily installed ACME screw drive lift carries a wheelchair and passenger between 4 stops, up to 23′ of travel (depending on local code)
  • Nominal speed of 20 ft/min; operated by constant pressure controls
  • Gate available with aluminum, acrylic or glass inserts, and with automatic opener
  • Drive system housed in tower, so no machine room required; 750 lb capacity
  • Manufacturer 3-year warranty
The nuts and bolts

Flexible design and feature options: Highly customizable: can be built to suit virtually any home or commercial project.
Quiet and reliable hydraulic drive: Smooth start, stop and overall ride that works dependably.
Machine roomless: Enclosed drive system means no machine room is required, making the installation process easier.
Other standard features: 36″ x 54″ standard platform, continuous pressure button operation, modular rail construction for easy construction, handrail.
Standard finish: Beige powder-coat paint.
Safety features: Emergency stop button on car, non-skid platform, manual lowering device, 42 1/8″ (1070 mm) side panels, keyed car buttons and keyed call stations, safety brake, door locks.
Warranty: 36 months parts. Please see complete details here.

Specifications
  • Applications: Residential, commercial, indoors, outdoors
    Standard capacity: 750 lb (340 kg)
    Maximum travel distance: 23′ (7 m), subject to local code; commercial use in the USA limited to 12′ to 14′ (3.65 to 4.26 m) depending on the year of code enforced
    Nominal speed: 20 ft/min (0.1 m/s)
    Drive/motor: 2:1 chain hydraulic, 3 hp (2.2 kW), gear-type motor
    Minimum pit: 3″ (76.2 mm)
    Power supply: 120 VAC, 20 amp, single phase, 60 Hz
Options
  • Indoor & Outdoor Options
  • Commercial & Residential Use
  • Enclosure and shaftway configurations
  • Platform gate
  • Upper/lower landing door and upper landing gate with glass or acrylic inserts
  • Folding seat on platform
  • Custom colors and finishes
  • Ramps for use without pit
  • Battery backup
  • And more…
Downloads
Landing Doors and Locks Selection Chart
V-1504 Brochure
V-1504 Color Chart
V-1504 Owner's Manual
V-1504 Planning Guide

Have Questions?

Need help choosing or installing an Inclined Platform Lift? Our experts are ready to assist!
Contact Us
Vertical Platform Lift

Freqently Asked Questions

What is the maximum travel height of the Savaria V-1504?
The V-1504 can travel up to 23 feet, making it ideal for multi-level homes, commercial buildings, or stage access.
Is the V-1504 suitable for both indoor and outdoor use?
Yes, the V-1504 is built for flexibility and can be installed indoors or outdoors, with weather-resistant options available for exterior applications.
Can the V-1504 be customized?
Absolutely. The lift offers various customization options including platform size, glass or solid panels, automatic doors, and a wide range of finishes.
What is the weight capacity of the V-1504?
The standard weight capacity is 750 lb, but higher-capacity options may be available depending on your needs and configuration.
Does the V-1504 require a machine room or pit?
No machine room is required. Depending on the configuration, the lift may need a shallow pit or can be installed with a small ramp for surface-mounted access.
