The Savaria Orion LU/LA Elevator offers commercial-grade accessibility for low-rise buildings, combining sleek design with code compliance and smooth, automatic operation.
The Savaria Orion LU/LA Elevator is a stylish, code-compliant elevator designed for low-rise public and commercial buildings. Combining the look and feel of a high-rise elevator with space-saving construction, it meets ADA and elevator code requirements while offering flexible cab finishes, automatic operation, and smooth, quiet performance—ideal for schools, churches, and professional offices.
Features
High-rise style, built for low-rise applications: Affordable elevator for low-rise buildings with 1400 lb capacity and automatic door option.
Aesthetically appealing: Attractive call station, control panel and digital floor indicators.
High-efficiency hydraulic drive system: Smooth ride, start and stop.
Variable speed pressure valve: Gradual acceleration and deceleration of cab.
Automatic doors: Fire-rated two-speed steel cab doors in black or architectural white, with infrared closing sensors; automatic landing doors are finished with primer.
Other standard features: Fully automatic operation, automatic cab on/off interior lighting, digital display in-car operating panel, architectural white ceiling with 4 pot lights, steel interior in choice of architectural white or black.
Standard finishes: Standard architectural white steel, stainless steel car operating panel, handrail and silver color trimmed light fixtures.
Safety features: Emergency battery back-up for lowering and interior lighting, emergency stop and alarm buttons, emergency manual lowering, safety brakes, overspeed valve.
Options
Optional configurations: Type 1, 2, 3, 4
Cab sizes:
W48” x L54” x H84” (1219 mm x 1371 mm x 2134 mm), Type 1, 2, 3, 4
W42” x L60” x H84” (1067 mm x 1524 mm x 2134 mm), Type 1, 2, 3, 4
W42” x L54” x H84” (1067 mm x 1371 mm x 2134 mm), Type 1, 2
W51” x L51” x H84” (1295 mm x 1295 mm x 2134 mm), Type 3, 4

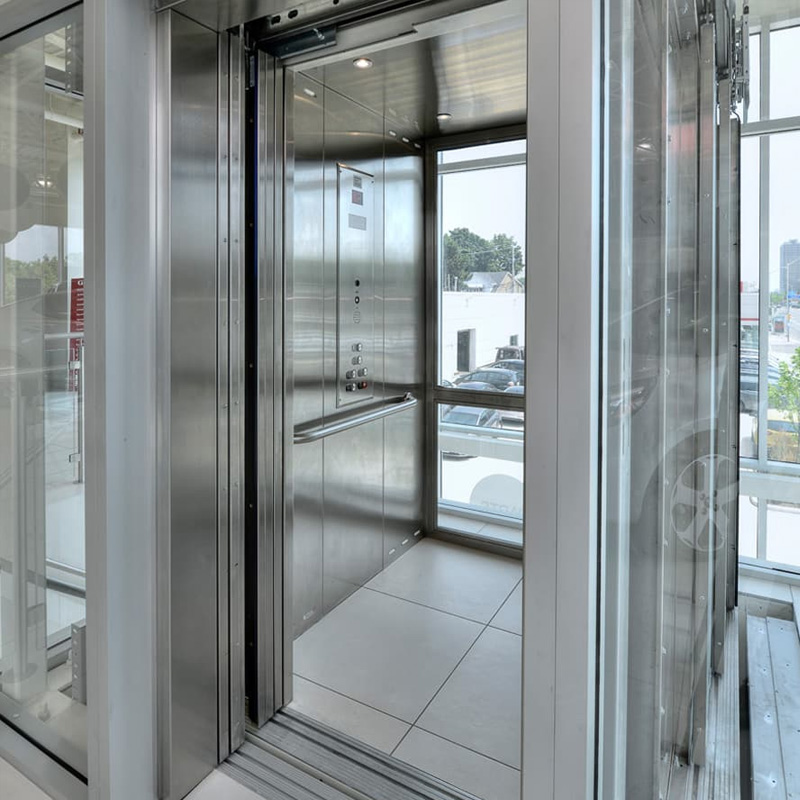

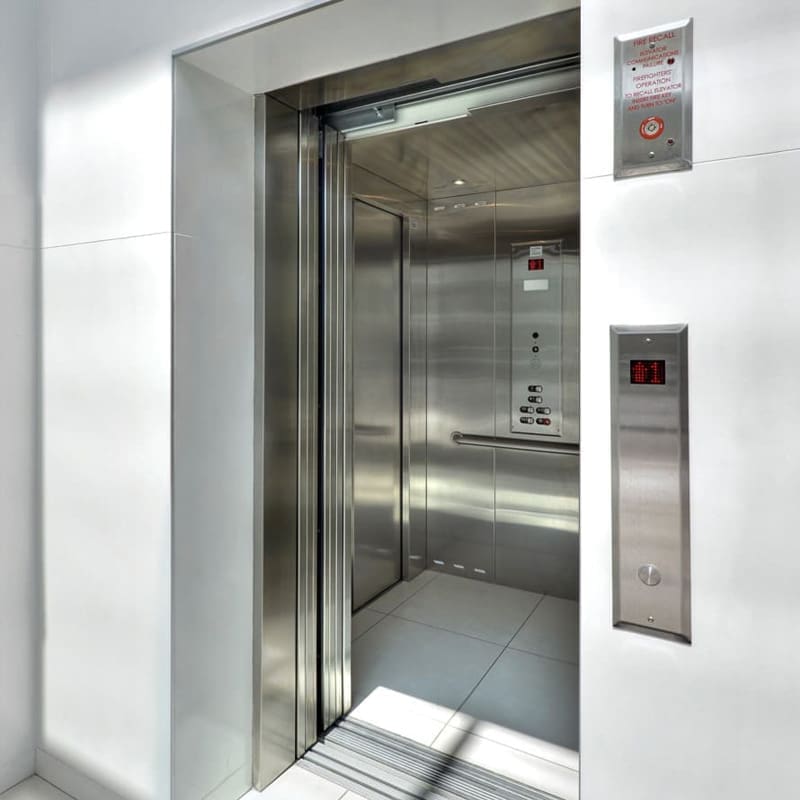

Optional cab finishes: Classic cab can be upgraded with fire-rated plastic laminate panel overlays in a variety of colors, or full stainless steel cab.
Orion17 cab package: Fire-rated laminate overlay panels in choice of color, framed in stainless steel; stainless steel cab doors and dropped ceiling. Available only in 48″ x 54″ (1219 mm x 1372 mm) or 42″ x 60″ (1067 mm x 1524 mm), Type 1 and 2 cab configurations.
Optional fixture finishes: Brass
Optional landing door finishes: Architectural white, black, custom color, or stainless steel.
Package for 2010 Code and Above: Phone line detection, sheave guard and oil tank temperature sensor.
Other Options: Up to 6 stops (code permitting), hands-free phone, telephone cabinet with choice of finish, fire recall service, buffer springs. Also available for residential applications, the Savaria One Touch Alert System. Using an owner-supplied, pre-paid nano sim card, this one-button system installed by your Savaria dealer, provides two-way communication to pre-programmed emergency contacts in case of emergency.
Specifications
Applications: Commercial (LU/LA), residential (where code permits), indoors.
Standard capacity: 1400 lb (635 kg)
Maximum travel: 25′ (7620 mm), with up to 6 stops (subject to local code requirements); higher travel available where code permits.
Nominal speed: 30 ft/min (0.15 m/s)
Drive/Motor: 1:2 cable hydraulic drive, 5 hp submersed motor
Minimum pit: 14″ (355 mm)
Minimum overhead clearance: 108″ (2743 mm), or 110″ (2794 mm) for Orion17 cab; for new build overhead is 134″ (3404 mm) per code.
Power Supply: 208 volt, three phase, 60 Hz, 30 amps or 240 volt, single phase, 40 amps, 60 Hz
Lighting Supply: 120 Volt, 15 Amps, 60 Hz
