Savaria Multilift With Enclosure

Savaria-Logo

The Savaria Multilift Unenclosed is a tough, open platform lift ideal for porches, decks, and short-rise access—indoors or outdoors.

Get a Free Quote
  • Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available

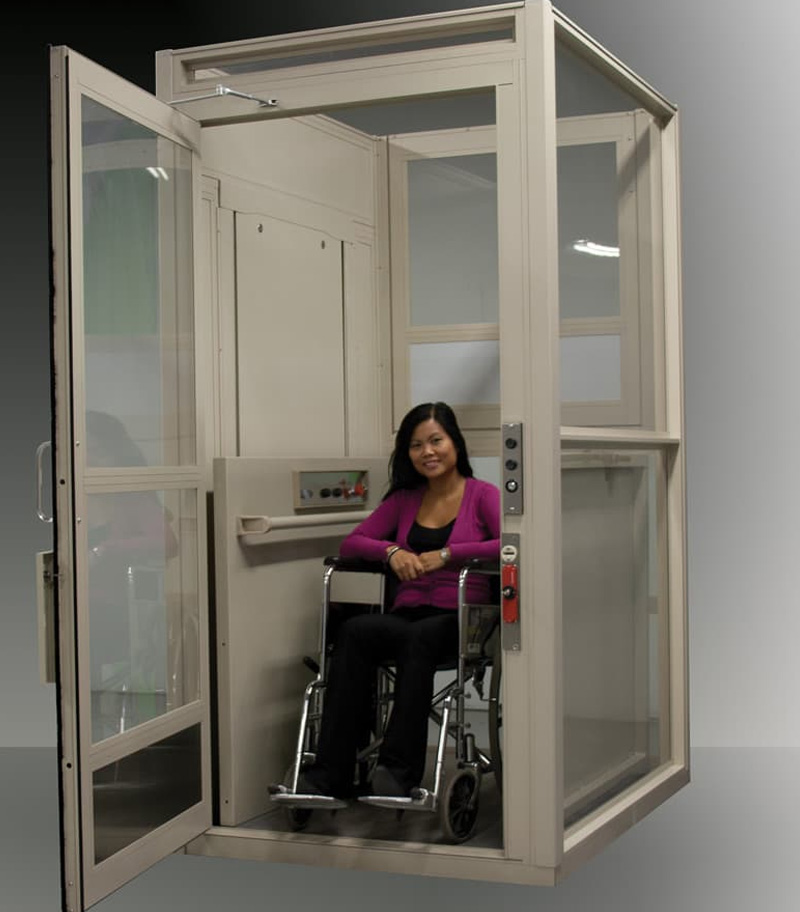

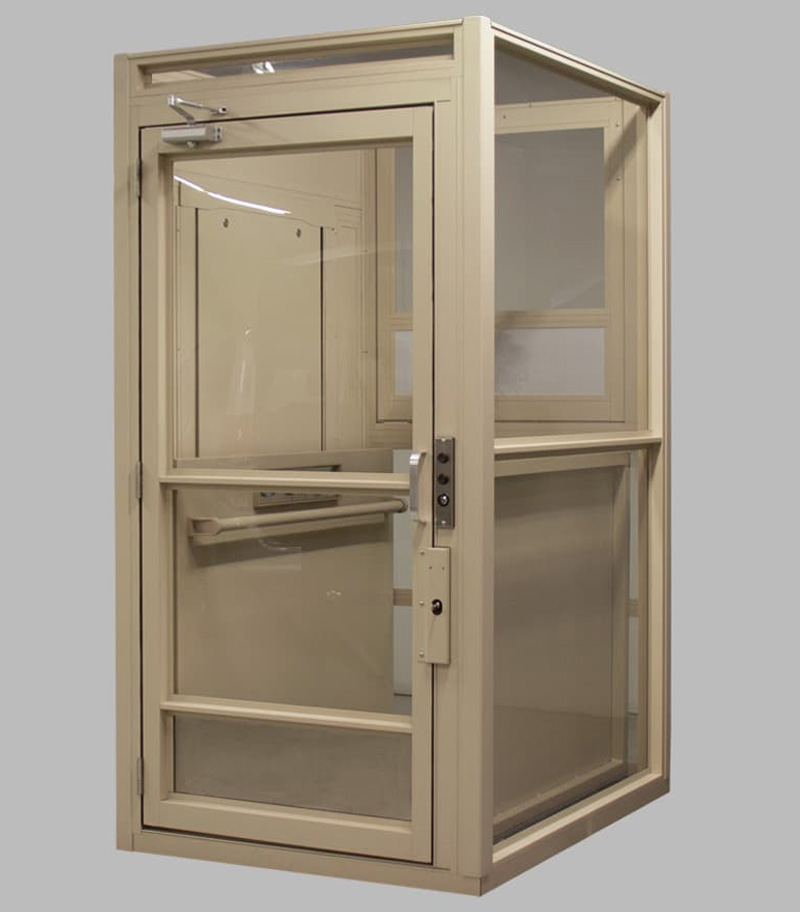

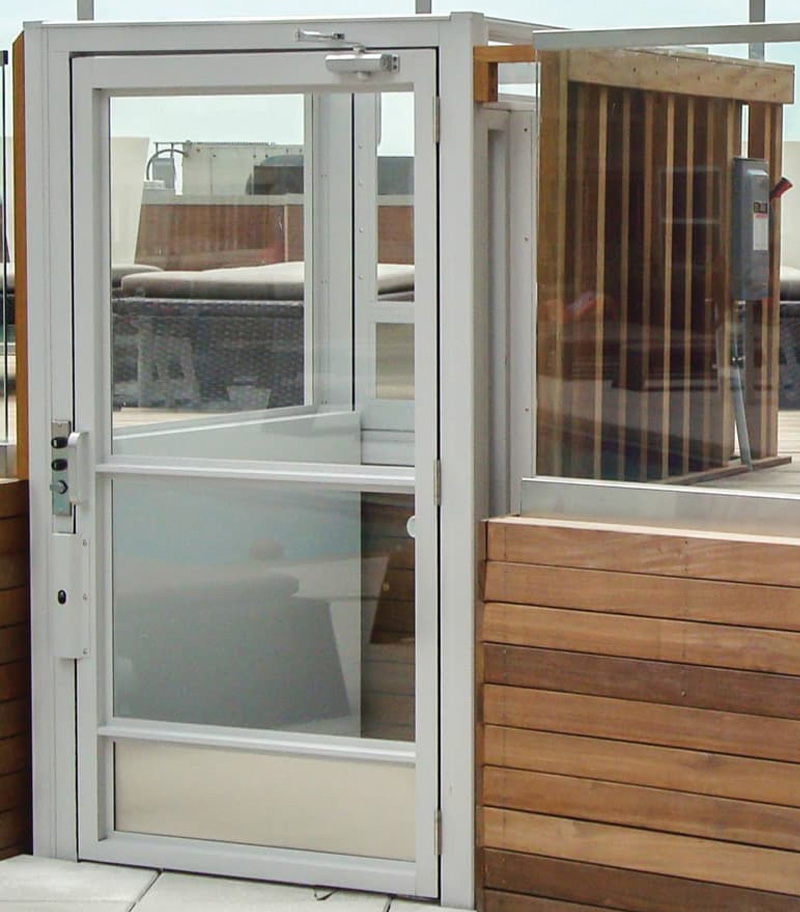

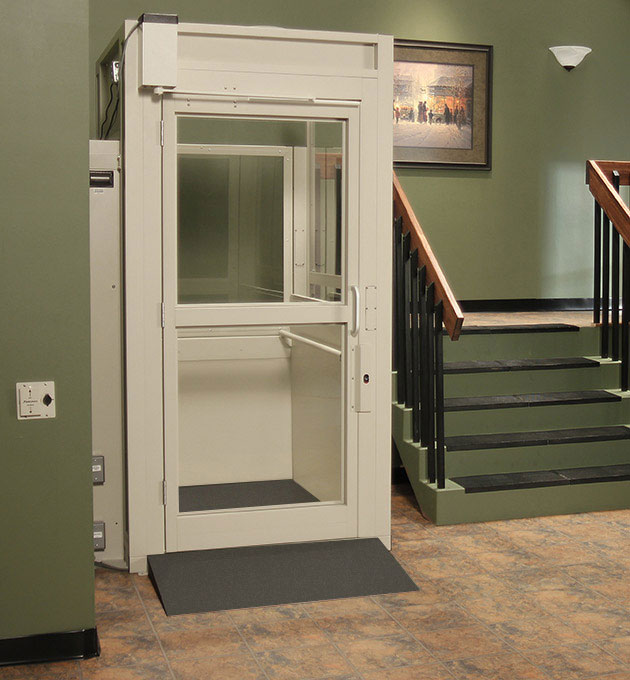

Multilift Enclosed Wheelchair Lift

The Savaria Multilift Enclosure provides a fully self-contained vertical platform lift designed for locations where a hoistway or shaft isn’t practical. Ideal for outdoor or public access applications, the enclosure includes its own aluminum frame, clear or tinted acrylic panels, and a built-in gate system for added safety. With weather-resistant construction and a smooth, quiet ride, it’s a dependable solution for residential or commercial accessibility.

Features:
  • Durable wheelchair lift for commercial* or residential access, available in multiple entry/exit configurations and platform sizes
  • Reliable, easily installed ACME screw drive lift carries a wheelchair and passenger between 2 stops, up to 72″ (for more stops and higher travel, see V-1504 VPL)
  • Nominal speed of 8 ft/min; operated by constant pressure controls
  • Gate available with aluminum, acrylic or glass inserts, and with automatic opener
  • Drive system housed in tower, so no machine room required; 750 lb capacity
  • Suitable for indoor or outdoor use; also available with enclosure and as a mobile unit
The nuts and bolts

Enclosed unit: Comes complete with an aluminum-framed enclosure.
Durable construction: Ideal for indoor use or outdoors; includes weather-resistant lock.
Reliable operation: From the ACME screw drive with its precision movement and strength for day-to-day use.
Easy to install: The self-enclosed drive tower makes the unit fast and easy to install; requires anchorage to a concrete base.
Other standard features: Continuous pressure operation, keyed access on car, non-skid zinc-coated platform in three standard sizes.
Standard finish: Beige powder-coat paint.
Safety features: Emergency stop button on car, non-skid platform, manual lowering crank, 42 1/8″ (1070 mm) side panels, keyed cab buttons and keyed call stations, backup nut and backup nut safety switch.
Warranty: 36 months parts. Please see complete details here.

Specifications
  • Applications: Commercial, residential, indoors, outdoors
  • Standard capacity: 750 lb (340 kg)
  • Maximum travel distance: 48″ (121.92 cm), optionally up to 72″ (182.88 cm)
  • Nominal speed: 8 ft/min (0.04 m/s)
  • Drive/motor: ACME screw drive and back-up nut, 1 hp, relay logic controller
  • Power supply: 120 VAC, 15 A, 60 Hz, single phase (must be a dedicated electrical line).
Options
  • Optional configurations: Type 2, 3 and 4
  • Platform sizes:
    W34″ x L48″ (864 mm x 1219 mm) Type 2, 3, 4
    W34″ x L54″ (863 mm x 1371 mm) Type 2, 3, 4
    W34″ x L60″ (863 mm x 1524 mm) Type 2, 3, 4
  • Other options: Low profile aluminum doors, steel ULC fire-rated ProDoor, wooden door, power gate and door operators; aluminum, acrylic or clear tempered laminated inserts for gate and aluminum door; GAL or Savaria WR-500 weather resistant lock; emergency light on car; fixed access ramp; commercial package (audible alarm on car, grab rail); telephone or ADA handsfree phone; joystick; 60 mm buttons; wired hand pendant. Keyless operation if desired. This unit can also be configured to travel up to 72″ (1828 mm).
Downloads
Landing Doors and Locks Selection Chart
Multilift Brochure
Multilift Owner's Manual
Multilift Public Planning Guide
Multilift Residential Planning Guide

Have Questions?

Need help choosing or installing an Inclined Platform Lift? Our experts are ready to assist!
Contact Us
Vertical Platform Lift

Freqently Asked Questions

What is the Savaria Multilift Unenclosed used for?
The Multilift Unenclosed is ideal for short-rise access—such as porches, decks, and entryways—where a full enclosure isn’t required or feasible.
Is the lift weather-resistant for outdoor use?
Yes, the lift is built for outdoor durability with a powder-coated finish and weather-resistant materials. It’s designed to perform year-round in most climates.
How high can the lift travel?
The Multilift Unenclosed can travel between 48" and 72", depending on local building codes and site requirements.
What safety features does it include?
Safety features include continuous pressure controls, a non-skid platform surface, keyed access for security, and an automatic folding ramp for easy entry.
Is installation complicated?
Not at all. The self-contained design and drive tower require minimal construction, making it a quick and efficient installation for most homes or buildings.
