Pegasus Inclined Platform Lift by Savaria
The Savaria Pegasus Inclined Platform Lift is a custom-built solution for staircases with curves, landings or multiple levels. It carries up to 660 lb, installs without a machine room, and is suitable for both residential and commercial use.
- Payment Options: ACH, Cash, Credit Card (3% Service Fee), Debit Card & Financing Options Available
Pegasus Inclined Platform Lift

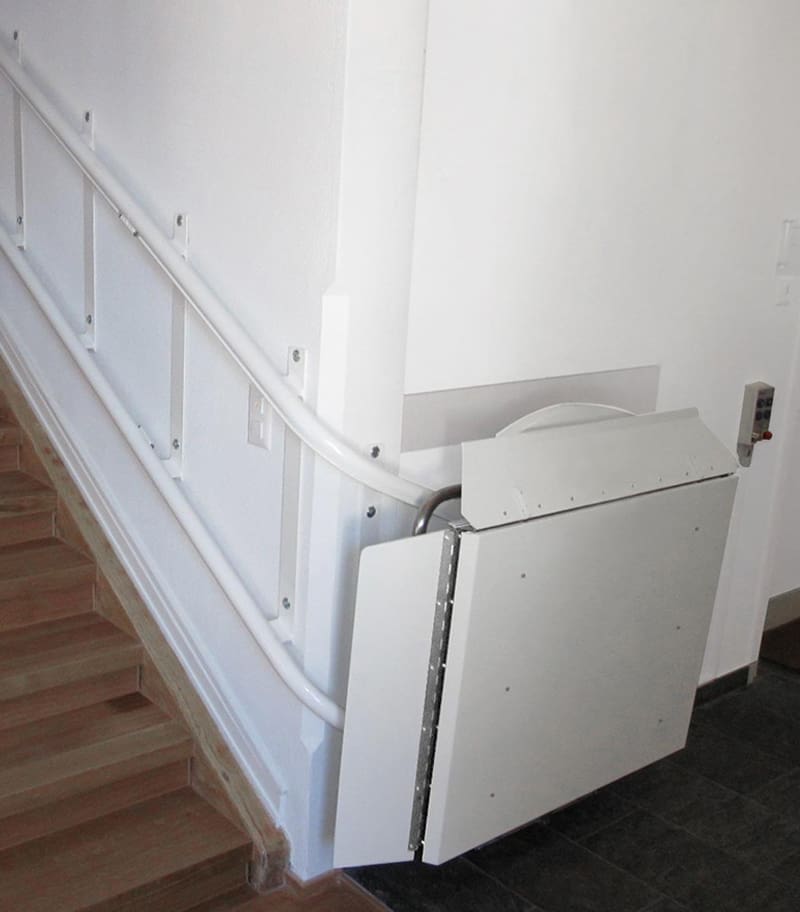

The Savaria Pegasus Inclined Platform Lift is designed to provide safe, flexible access for wheelchair users or seated passengers over stairways—whether straight, curved, or with intermediate landings. With a 660 lb (300 kg) capacity and standard platform sizes (800×1050 mm or 810×1220 mm), it accommodates typical residential and light commercial installations.
Featuring a motor installed at the top landing (eliminating the need for a dedicated machine room), fold-away platforms, automatic safety arms, non-skid surfaces, and a sense-of-light design that preserves stair access when parked, the Pegasus blends performance with minimal visual impact.
Outdoor installations are possible in moderate climates, and the system supports a variety of optional configurations including 90° or 180° turns, custom platform sizes and folding seats, making it a strong choice for complex stair geometries in accessibility upgrades.
Standard features:
- Custom built to provide access over stairs with multiple levels, curves or intermediate landings.
- Carries a passenger in a wheelchair or seated passenger; capacity of 660 lb.
- Power foldaway platform available in 2 sizes including ADA-compliant size and custom sizing.
- Motor is installed at the top landing, no machine room required.
- For residential and commercial use (where code permits); indoor and outdoor applications (moderate climates only).
Features
Minimal construction required: Provides access without significant renovations.
Flexible for many types of installations: Custom built to your specifications to fit staircases with inside and outside curves, spiral stairs or multiple levels.
Space-saving design: Sleek design with a foldaway and optional out-of-the-way parking that harmonizes with any building design.
Machine roomless: Motor is unobtrusively installed at the top landing, with the controller located remotely.
Other standard features: Constant pressure buttons to move the lift up and down, pedestrian warning light and movement alarm, straight through platform, power folding platform and safety arms, motorized ramps and pendant control.
Standard finish options:White (RAL 9003). Stainless steel rails for outdoor units (required upgrade).
Safety features: Sensor system on the platform, non-skid platform with side safety flaps, overspeed governor, manual lowering device, power folding safety arms, keyed access for call stations and emergency stop button.
Options
Optional configurations: Vertical bend, steep start, 90 degree turn (inside curve, outside curve), 180 degree turn (inside curve) and special bends
Other options: Custom platform sizes, folding passenger seat with 330 lb capacity, stabilizer for any travel under 20 degrees, compact drive, free-standing pedestal call station
Specifications
Applications: Commercial, residential, indoor, outdoor*
Stair types: Multiple levels of straight stairs,stairs with intermediate landings, stairs with turns
Capacity: 660 lb (300 kg)
Standard platform size: W31.5″ x L41.3″ (800 x 1050 mm), W31.9″ x L48″ (810 x 1220 mm)
Speed: 20-30 ft/min (0.10-0.15 m/s), 10ft/min (0.05 m/s) through curves
Maximum travel: 164′ (50 m)
Motor: 2 hp rope drive, with optional compact drive
Gradient: Changing, with or without landings and turns, up to 55˚ (residential) or up to 45˚ (commercial)
Power supply: 208-240 VAC single-phase, 50/60 Hz, dedicated 20 Amp circuit
Product Update
The Savaria Pegasus lift replaces the Omega inclined platform lift. This product is not available for sale in Quebec.
